Heater radiator Siemens for BMW 5 Series E34 M5 (1992)

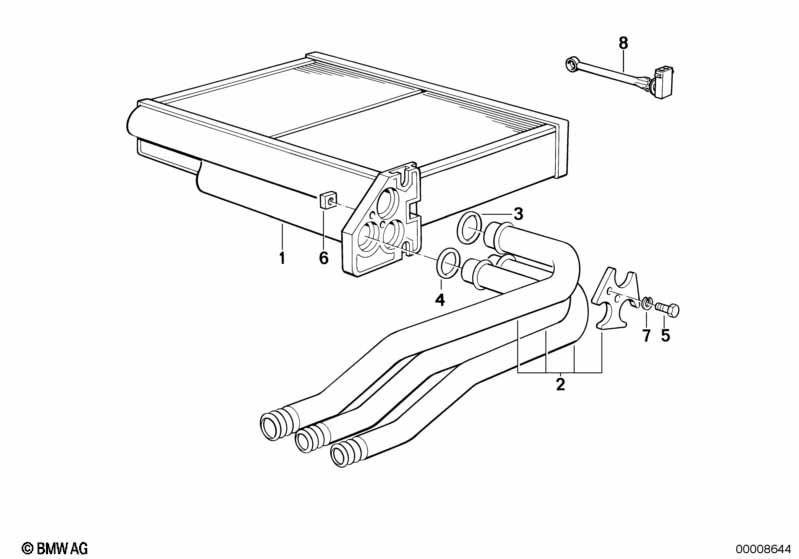

This Heater radiator Siemens technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Heater radiator | 1 | 09/1993 | 64116971104 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO VL ALUMINIUM | ||||||||||
| 02 | Pipe | 1 | 09/1993 | 64111388174 | $323.91 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO VL PLASTIC | ||||||||||
| 02 | Pipe | HALTER | 1 | 09/1993 | 64118351596 | Shop at ECS Tuning | ||||
| 03 | Gasket ring | D=13,98MM | 2 | 09/1993 | 64111374238 | $1.82 | Shop at ECS Tuning | |||
| 04 | Gasket ring | D=17.12MM | 1 | 09/1993 | 64118377824 | $1.82 | Shop at ECS Tuning | |||
| 05 | Hex Bolt | M5X20-8.8 ZNS | 1 | 09/1993 | 07119913116 | $1.20 | Shop at ECS Tuning | |||
| 06 | Square nut | M5 | 1 | 09/1993 | 07119921431 | $0.36 | Shop at ECS Tuning | |||
| 07 | Spring washer | B5 | 1 | 09/1993 | 07119933060 | $0.11 | Shop at ECS Tuning | |||
| 08 | Temperature sensor, heater | 2 | 09/1993 | 64111374242 | $33.45 | Shop at ECS Tuning | ||||
