Heater radiator Siemens for BMW 3 Series E36 325is (1990)

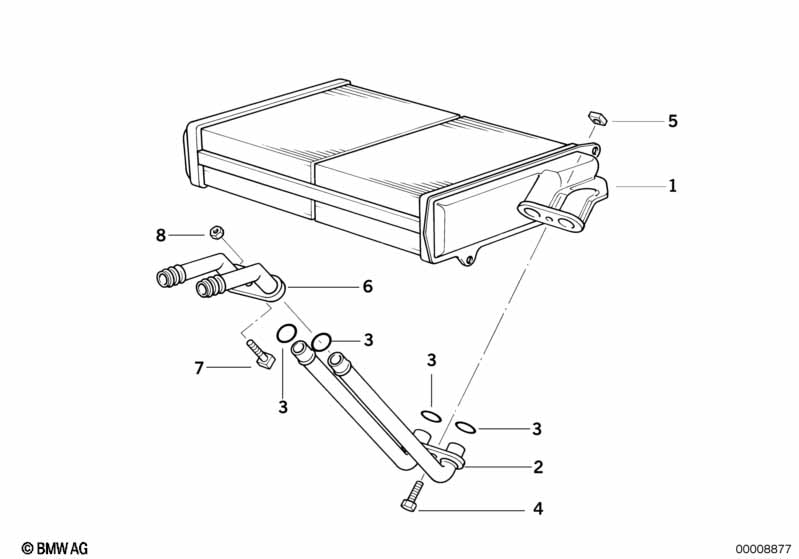

This Heater radiator Siemens technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325is. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Set, heater core | 1 | 09/1994 | 64119176096 | $1035.82 | Shop at ECS Tuning | ||||
| 02 | Pipe | 1 | 01/1993 | 64111387988 | $57.84 | SI 641091408 | Shop at ECS Tuning | |||
| 03 | Gasket ring | 4 | 09/1994 | 64111394286 | $1.07 | SI 641091408 | Shop at ECS Tuning | |||
| 05 | Square nut | M6 | 1 | 09/1994 | 07119904050 | $0.11 | Shop at ECS Tuning | |||
| 06 | Connector | 1 | 01/1993 | 64118391141 | $35.13 | Shop at ECS Tuning | ||||
| 07 | Square headed bolt | 1 | 09/1994 | 64111394287 | $2.22 | SI 641091408 | Shop at ECS Tuning | |||
| 08 | Hex nut | M6-8-ZNNIV SI | 1 | 07119905543 | $0.38 | Shop at ECS Tuning |
Notes
- SI = Service Information
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 325is Heater radiator Siemens?
- This technical diagram illustrates the Heater radiator Siemens within the Heater and Air Conditioning group for the 3 Series E36 325is produced during 1990. It provides a detailed exploded view of the components, identifying key parts such as the Set, heater core (Part #64119176096).
- Which models use the hardware listed in this Heater radiator Siemens?
- The hardware and components featured in the Heater radiator Siemens are specific to the 3 Series E36 325is produced during 1990. These technical specifications ensure that parts like the Set, heater core (64119176096) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Heater radiator Siemens assembly?
- Each item in the Heater radiator Siemens corresponds to the numbered list below the illustration. For the 3 Series E36 325is, you can identify the Set, heater core by locating its position on the schematic, which then links to the official BMW part number 64119176096 for the Heater and Air Conditioning section.
