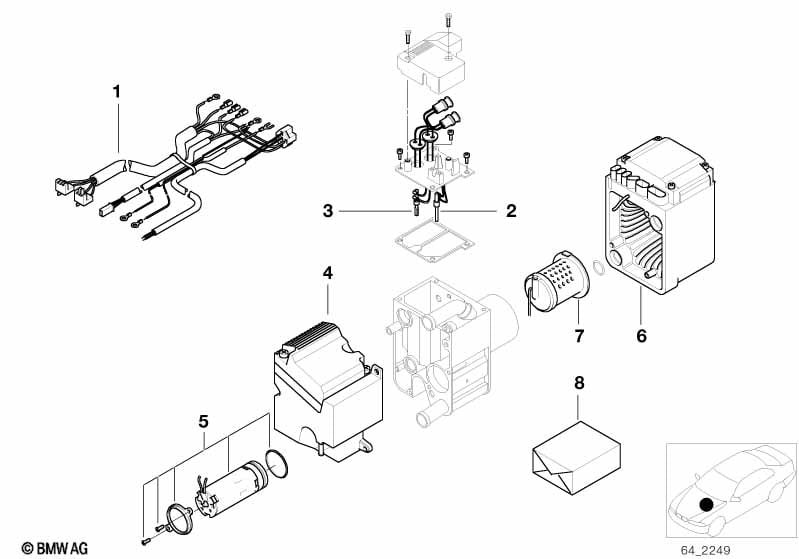

Single components f Independent heater for BMW 5 Series E39 528i (1996)
This Single components f Independent heater technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Independent heater glow plug | 1 | 09/1995 | 03/1999 | 64128372175 | Shop at ECS Tuning | ||||
| 03 | Independent heater flame trap | 1 | 09/1995 | 03/1999 | 64128372176 | Shop at ECS Tuning | ||||
| 04 | Independent heater supply unit | 1 | 09/1995 | 03/1999 | 64128372178 | ENDED | Shop at ECS Tuning | |||
| 05 | Water pump f Independent heater | 1 | 09/1995 | 09/1998 | 64128372177 | Shop at ECS Tuning | ||||
| 06 | Control unit f Independent heater | 1 | 09/1995 | 03/1999 | 64128372179 | ENDED | Shop at ECS Tuning | |||
| 07 | Combustion chamber insert f indep.heater | 1 | 03/1999 | 64128370521 | ENDED | Shop at ECS Tuning | ||||
| 08 | Gasket set f Independent heater | 1 | 03/1999 | 64128370524 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
