Automatic air conditioning control for BMW 3 Series E36 318i (1994)

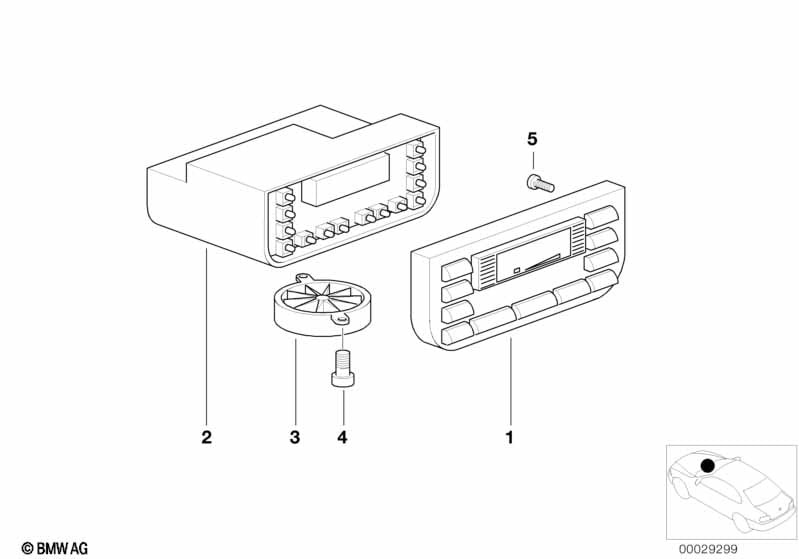

This Automatic air conditioning control technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front plate, contr. auto air conditioner | 1 | 64118361832 | $71.35 | Shop at ECS Tuning | |||||
| For vehicles with Automatic air flow control |
S528A=Yes |
|||||||||
| 01 | Front plate, contr. auto air conditioner | 1 | 64118370477 | $137.10 | Shop at ECS Tuning | |||||
| 02 | Uncoded control unit f autom.air condit. | 1 | 64118379521 | $431.10 | Shop at ECS Tuning | |||||
| For vehicles with Automatic air flow control |
S528A=Yes |
|||||||||
| 02 | Uncoded control unit f autom.air condit. | AUC | 1 | 64118378466 | $431.10 | Shop at ECS Tuning | ||||
| 03 | Interior temperature sensor fan | 1 | 67328378663 | $68.80 | Shop at ECS Tuning | |||||
| 04 | Screw | KB35 X 8 | 4 | 04/1996 | 07149154942 | $0.44 | Shop at ECS Tuning | |||
| 04 | Screw | 2,1X20 | 4 | 61131389045 | $0.28 | Shop at ECS Tuning | ||||
| 05 | Screw | 2,5X7 | 4 | 64118368728 | $2.03 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 318i Automatic air conditioning control?
- This technical diagram illustrates the Automatic air conditioning control within the Heater and Air Conditioning group for the 3 Series E36 318i produced during 1994. It provides a detailed exploded view of the components, identifying key parts such as the Front plate, contr. auto air conditioner (Part #64118361832).
- Which models use the hardware listed in this Automatic air conditioning control?
- The hardware and components featured in the Automatic air conditioning control are specific to the 3 Series E36 318i produced during 1994. These technical specifications ensure that parts like the Front plate, contr. auto air conditioner (64118361832) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Automatic air conditioning control assembly?
- Each item in the Automatic air conditioning control corresponds to the numbered list below the illustration. For the 3 Series E36 318i, you can identify the Front plate, contr. auto air conditioner by locating its position on the schematic, which then links to the official BMW part number 64118361832 for the Heater and Air Conditioning section.
