Drying container for BMW 5 Series E39 528i (1996)

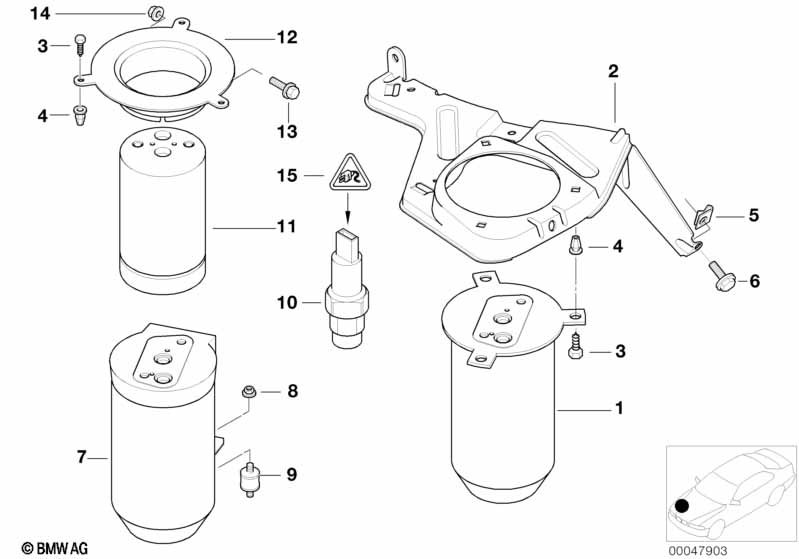

This Drying container technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Important! Not suitable for retrofit air conditioning system Economic. For parts for Economic see EPC "Acessories Comfort" |
|||||||||
| 01 | Drying container | 1 | 09/1997 | 64538372985 | $217.53 | Shop at ECS Tuning | ||||
| 02 | Bracket drying container | 1 | 64538367956 | $14.42 | Shop at ECS Tuning | |||||
| 03 | Hex head screw | ST4,8X19-U2 SW | 3 | 07119904288 | $2.05 | Shop at ECS Tuning | ||||
| 04 | Expanding nut | ST 4.8 | 3 | 63121374075 | $0.23 | Shop at ECS Tuning | ||||
| 05 | C-clip nut | M6-ZNS3 | 3 | 51127070202 | $1.00 | Shop at ECS Tuning | ||||
| 06 | Hex Bolt with washer | M6X16-U1-8.8 | 3 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 10 | Safety pressure switch | 1 | 09/1998 | 64538391639 | $111.38 | +core | Shop at ECS Tuning | |||
| 14 | Hex Bolt with washer | M6X16-U1-8.8 | 1 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 15 | Universal socket housing uncoded | 4 POL. | 1 | 09/1998 | 61138365356 | $3.10 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Bushing contact MQS strand seal w.cable | 0,5-0,75 MM² AG | X | 09/1998 | 61130056384 | Shop at ECS Tuning | ||||
| -- | Bushing contact MQS strand seal w.cable | 0,35-0,5 MM² AG | X | 09/1998 | 61130056961 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
