Air channel for BMW 5 Series E60 525i (2004)

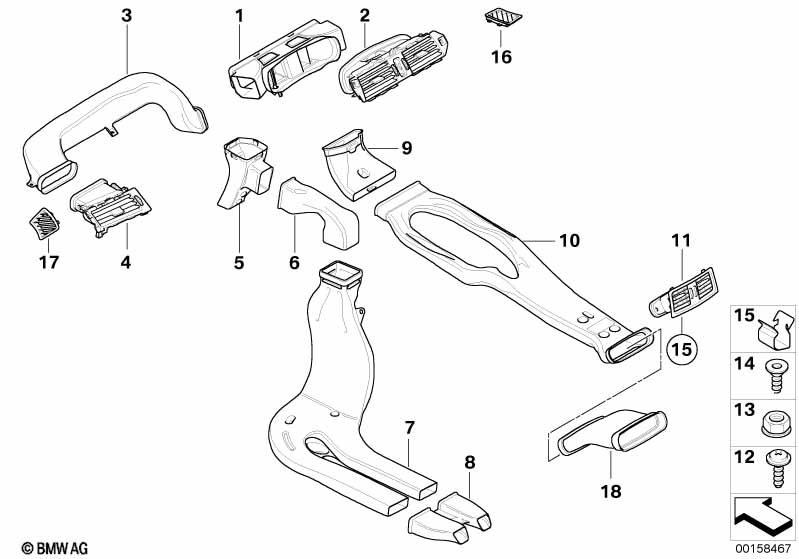

This Air channel technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Air distributor | 1 | 64226924898 | $63.77 | ENDED | Shop at ECS Tuning | ||||
| 03 | Air channel left | 1 | 64227034113 | $11.45 | Shop at ECS Tuning | |||||
| 03 | Air channel right | 1 | 64227034114 | $11.45 | ENDED | Shop at ECS Tuning | ||||
| 05 | Left floor heater duct | 1 | 64227074415 | $10.23 | Shop at ECS Tuning | |||||
| 05 | Right floor heater duct | 1 | 64227074416 | $10.23 | Shop at ECS Tuning | |||||
| 06 | Air duct, left footwell | 1 | 64227034123 | $6.37 | Shop at ECS Tuning | |||||
| 06 | Air duct, right footwell | 1 | 64227034124 | $6.37 | ENDED | Shop at ECS Tuning | ||||
| 07 | Heater duct, rear, left front | 1 | 51477008955 | $20.08 | Shop at ECS Tuning | |||||
| 07 | Heater duct, rear, right front | 1 | 51477008956 | $20.08 | Shop at ECS Tuning | |||||
| 08 | Heater duct, rear, left rear | 1 | 51477008957 | $8.77 | Shop at ECS Tuning | |||||
| 08 | Heater duct, rear, rear right | 1 | 51477008958 | $8.77 | Shop at ECS Tuning | |||||
| 09 | Air channel center | 1 | 64227063335 | $8.81 | Shop at ECS Tuning | |||||
| 10 | Air duct rear compartment | 1 | 64227077641 | $16.25 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Blind plug | D=25MM | 1 | 51718126605 | $0.39 | Shop at ECS Tuning | ||||
| For vehicles with Automatic air conditioning |
S534A=Yes |
|||||||||
| 10 | Air duct rear compartment | 1 | 64227077641 | $16.25 | Shop at ECS Tuning | |||||
| For vehicles with Automatic air conditioning or special equipment BMW Individual |
S534A=Yes S940A=Yes |
|||||||||
| 11 | Rear fresh air grille | SCHWARZ | 1 | 64228038241 | $49.23 | ENDED | Shop at ECS Tuning | |||
| 11 | Rear fresh air grille | BEIGE | 1 | 64228038242 | $49.23 | ENDED | Shop at ECS Tuning | |||
| 12 | Screw, self tapping | ST4,2X19-U2-C-H | 11 | 07119904176 | $0.25 | Shop at ECS Tuning | ||||
| 13 | Hex nut | M5-10-ZNNIV SI | 2 | 07119906520 | Shop at ECS Tuning | |||||
| 14 | Countersunk screw | 3,5X9 | 1 | 64226936555 | $0.21 | Shop at ECS Tuning | ||||
| 15 | Clamp | 2 | 64226921596 | $0.37 | Shop at ECS Tuning | |||||
| For vehicles with grey |
AD=Yes |
|||||||||
| 16 | Trim side window defroster fr.passenger | BASALTGRAU | 1 | 51457063422 | $2.57 | ENDED | Shop at ECS Tuning | |||
| For vehicles with anthracite or beige 3 or amethyst or kastanienbraun or black or trüffel-braun |
AT=Yes BA=Yes RH=Yes RK=Yes SW=Yes TE=Yes |
|||||||||
| 16 | Trim side window defroster fr.passenger | SCHWARZ | 1 | 51457063420 | $2.57 | Shop at ECS Tuning | ||||
| For vehicles with grey |
AD=Yes |
|||||||||
| 17 | Trim side window defroster driver | BASALTGRAU | 1 | 51457063421 | $2.57 | Shop at ECS Tuning | ||||
| For vehicles with anthracite or beige 3 or amethyst or kastanienbraun or black or trüffel-braun |
AT=Yes BA=Yes RH=Yes RK=Yes SW=Yes TE=Yes |
|||||||||
| 17 | Trim side window defroster driver | SCHWARZ | 1 | 51457063419 | $2.57 | Shop at ECS Tuning | ||||
