Water valve/Water hose IHKA High for BMW 5 Series E60 530d (2002)

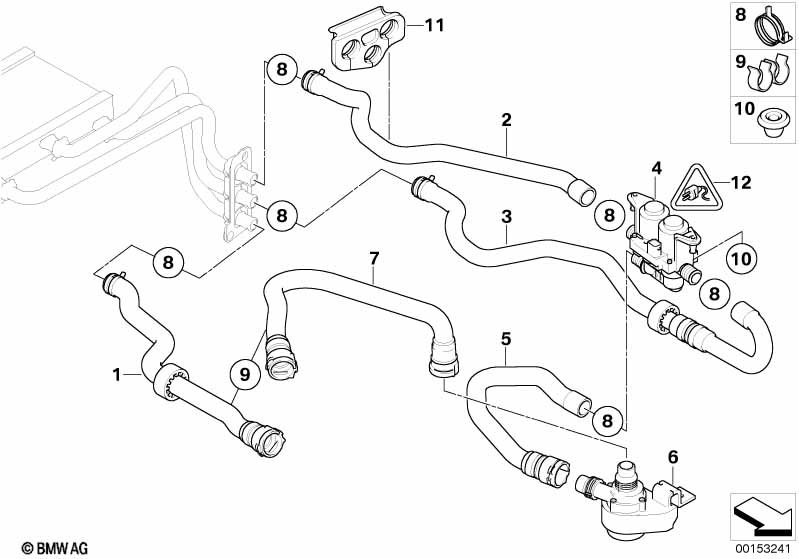

This Water valve/Water hose IHKA High technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 530d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Automatic air conditioning and Auxiliary heating |
S534A=Yes S536A=No |
||||||||
| 01 | Hose for radiator and engine return | 1 | 64216912735 | Shop at ECS Tuning | ||||||
| 02 | Hose for water valve and radiator | 1 | 64216910757 | $14.84 | Shop at ECS Tuning | |||||
| 03 | Hose for water valve and radiator | 1 | 64216910758 | $22.93 | Shop at ECS Tuning | |||||
| 04 | Water valve | 1 | 64116906652 | $124.52 | Shop at ECS Tuning | |||||
| 05 | Hose additional water pump/water valve | 1 | 64216917699 | Shop at ECS Tuning | ||||||
| 06 | Additional water pump | 1 | 64216917700 | Shop at ECS Tuning | ||||||
| 07 | Hose auxiliary water pump, engine flow | 1 | 64216917697 | Shop at ECS Tuning | ||||||
| 08 | Hose clamp | D=27MM | 6 | 64217518579 | $1.28 | Shop at ECS Tuning | ||||
| 09 | Hose clamp | 1 | 64216904030 | $1.10 | Shop at ECS Tuning | |||||
| 10 | Grommet | 2 | 64116915444 | $1.63 | Shop at ECS Tuning | |||||
| 11 | Grommet | 1 | 64216915171 | $7.25 | Shop at ECS Tuning | |||||
| 12 | Universal socket housing uncoded | 2 POL. | 1 | 07/2010 | 61138795954 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Bushing contact MQS strand seal w.cable | 0,5-0,75 MM² AG | 2 | 07/2010 | 61130056384 | Shop at ECS Tuning | ||||
| -- | Bushing contact MQS strand seal w.cable | 0,35-0,5 MM² AG | 2 | 07/2010 | 61130056961 | Shop at ECS Tuning | ||||
| 12 | Repair kit, socket housing | 2 POL. | 1 | 61132359999 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Bushing contact MQS strand seal w.cable | 0,5-0,75 MM² AG | 2 | 61130056384 | Shop at ECS Tuning | |||||
| -- | Bushing contact MQS strand seal w.cable | 0,35-0,5 MM² AG | 2 | 61130056961 | Shop at ECS Tuning | |||||
