Single parts f side panel teleph.antenna for BMW 3 Series E36 328i (1995)

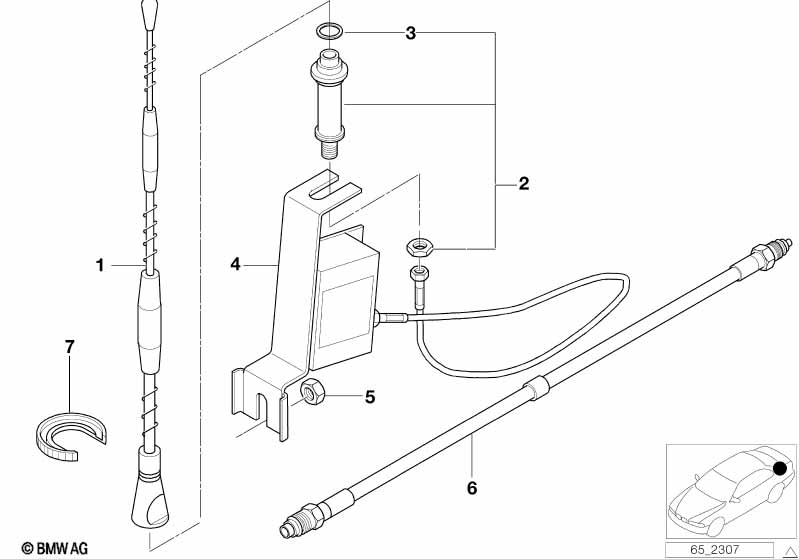

This Single parts f side panel teleph.antenna technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Antenna radiator | D-NETZ 837MM | 1 | 84518360970 | $145.63 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Antenna base | D-NETZ | 1 | 84518360971 | ENDED, +core | Shop at ECS Tuning | ||||
| 03 | Gasket ring | 1 | 84518361027 | $1.23 | ENDED | Shop at ECS Tuning | ||||
| 04 | Aerial diplexer | D-NETZ | 1 | 84518360972 | ENDED, +core | Shop at ECS Tuning | ||||
| 05 | Hex nut with plate | M6-8-ZNNIV SI | 1 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| 06 | Antenna cable | D-NETZ 1830MM | 1 | 84548360565 | ENDED | Shop at ECS Tuning | ||||
| 07 | Antenna key | 1 | 84549404727 | $1.34 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
