Wiring full suppressing for BMW R45-R65LS..78-85 R45

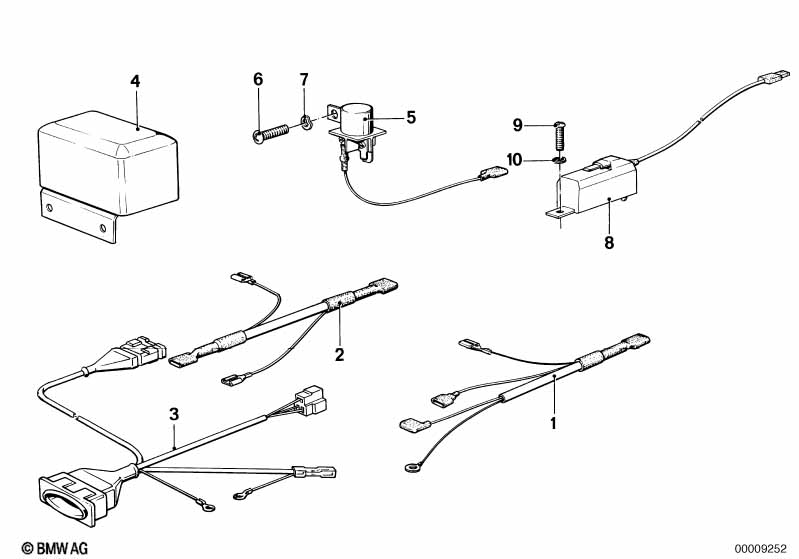

This Wiring full suppressing technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R45. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Official vehicles |
=Yes |
|||||||||
| 01 | Wiring full suppressing | 1 | 09/1980 | 65311243568 | ENDED | Shop at ECS Tuning | ||||
| 02 | Wiring full suppressing | 1 | 09/1980 | 65311243569 | ENDED | Shop at ECS Tuning | ||||
| 03 | Wiring full suppressing | ZUENDUNG | 1 | 09/1980 | 65311244274 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Voltage regulator | 1 | 12321244409 | $95.61 | +core | Shop at ECS Tuning | ||||
| 05 | Suppression capacitor | 1 | 65311355502 | ENDED, +core | Shop at ECS Tuning | |||||
| 06 | Fillister head screw | M6X10 | 1 | 07119907646 | $0.40 | Shop at ECS Tuning | ||||
| 07 | Spring washer Black | B6-ZN | 1 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 07 | Washer | 5.3-140 HV-ZNS | 1 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 07 | Wave washer | B6-ZNS3 | 1 | 07119904496 | $1.78 | ENDED | Shop at ECS Tuning | |||
| 08 | Suppression filter | 1 | 09/1980 | 65311243749 | ENDED | Shop at ECS Tuning | ||||
| 09 | Fillister head screw | M4X10-4.8-H | 1 | 09/1980 | 07119907616 | $1.07 | Shop at ECS Tuning | |||
| 10 | Wave washer | B4 | 1 | 09/1980 | 07119932033 | $0.09 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW R45-R65LS..78-85 R45 Wiring full suppressing?
- This technical diagram illustrates the Wiring full suppressing within the Audio, navigation, information systems group for the R45-R65LS..78-85 R45. It provides a detailed exploded view of the components, identifying key parts such as the Wiring full suppressing (Part #65311243568).
- Which models use the hardware listed in this Wiring full suppressing?
- The hardware and components featured in the Wiring full suppressing are specific to the R45-R65LS..78-85 R45. These technical specifications ensure that parts like the Wiring full suppressing (65311243568) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Wiring full suppressing assembly?
- Each item in the Wiring full suppressing corresponds to the numbered list below the illustration. For the R45-R65LS..78-85 R45, you can identify the Wiring full suppressing by locating its position on the schematic, which then links to the official BMW part number 65311243568 for the Audio, navigation, information systems section.
