Multi-information display, rear for BMW 5 Series E39 525i (2003)

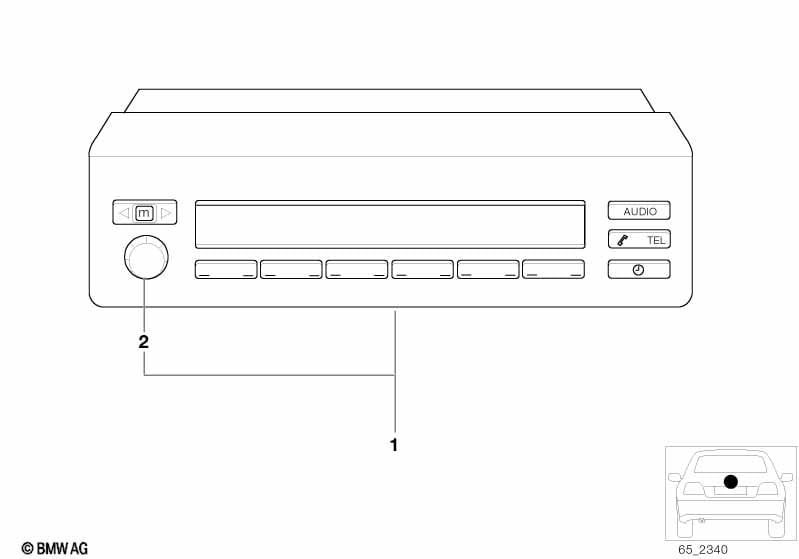

This Multi-information display, rear technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| only applies to rear center arm rest Radio/on-board computer/telephone/DSP |
||||||||||
| 01 | Multi-information display | 1 | 65826914941 | $852.89 | +core | Shop at ECS Tuning | ||||
| only applies to rear center arm rest Radio/on-board computer/DSP |
||||||||||
| 01 | Multi-information display | 1 | 65826914941 | $852.89 | +core | Shop at ECS Tuning | ||||
| 02 | Button | 1 | 65828372162 | $8.89 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 525i Multi-information display, rear?
- This technical diagram illustrates the Multi-information display, rear within the Audio, Navigation, Electronic Systems group for the 5 Series E39 525i produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Multi-information display (Part #65826914941).
- Which models use the hardware listed in this Multi-information display, rear?
- The hardware and components featured in the Multi-information display, rear are specific to the 5 Series E39 525i produced during 2003. These technical specifications ensure that parts like the Multi-information display (65826914941) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Multi-information display, rear assembly?
- Each item in the Multi-information display, rear corresponds to the numbered list below the illustration. For the 5 Series E39 525i, you can identify the Multi-information display by locating its position on the schematic, which then links to the official BMW part number 65826914941 for the Audio, Navigation, Electronic Systems section.
