High End sound system, door, rear for BMW 7 Series G11 LCI 730dX (2020)

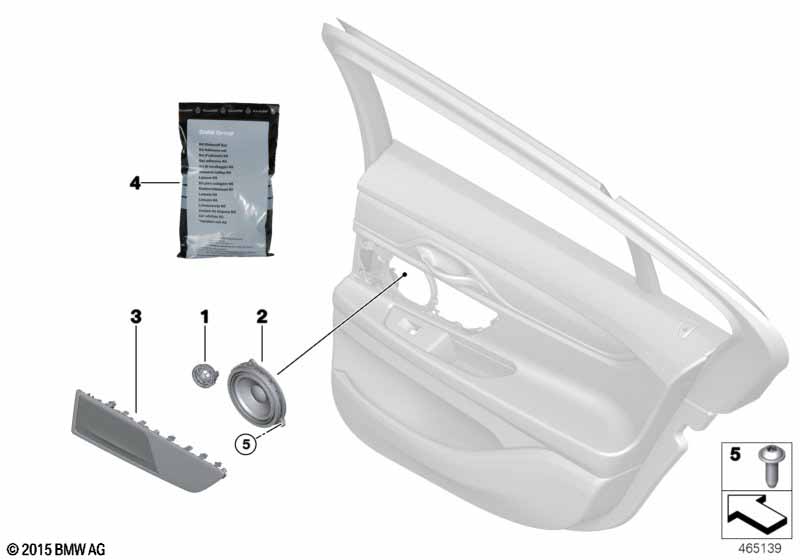

This High End sound system, door, rear technical drawing provides a detailed breakdown of the assembly for the 7 Series G11 LCI 730dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Bowers & Wilkins High End Sound System |
S6F1A=Yes |
||||||||
| 01 | Tweeter | ALEV 4 | 2 | 65132622773 | Shop at ECS Tuning | |||||
| 02 | MID-range loudspeaker | HIGH END | 2 | 65139279635 | Shop at ECS Tuning | |||||
| 03 | Trim, speaker, metal, left | 1 | 65136820767 | Shop at ECS Tuning | ||||||
| 03 | Trim, speaker, metal, right | 1 | 65136820768 | Shop at ECS Tuning | ||||||
| 04 | Adhesive set K6 | SET | 1 | 83195A547C4 | Shop at ECS Tuning | |||||
| 05 | Fillister head screw | TS 5X16 | 6 | 51417067920 | $0.39 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series G11 LCI 730dX High End sound system, door, rear?
- This technical diagram illustrates the High End sound system, door, rear within the Audio, Navigation, Electronic Systems group for the 7 Series G11 LCI 730dX produced during 2020. It provides a detailed exploded view of the components, identifying key parts such as the Tweeter (Part #65132622773).
- Which models use the hardware listed in this High End sound system, door, rear?
- The hardware and components featured in the High End sound system, door, rear are specific to the 7 Series G11 LCI 730dX produced during 2020. These technical specifications ensure that parts like the Tweeter (65132622773) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the High End sound system, door, rear assembly?
- Each item in the High End sound system, door, rear corresponds to the numbered list below the illustration. For the 7 Series G11 LCI 730dX, you can identify the Tweeter by locating its position on the schematic, which then links to the official BMW part number 65132622773 for the Audio, Navigation, Electronic Systems section.
