Single parts f rear helf loudspeaker for BMW 7 Series G12 740LiX (2018)

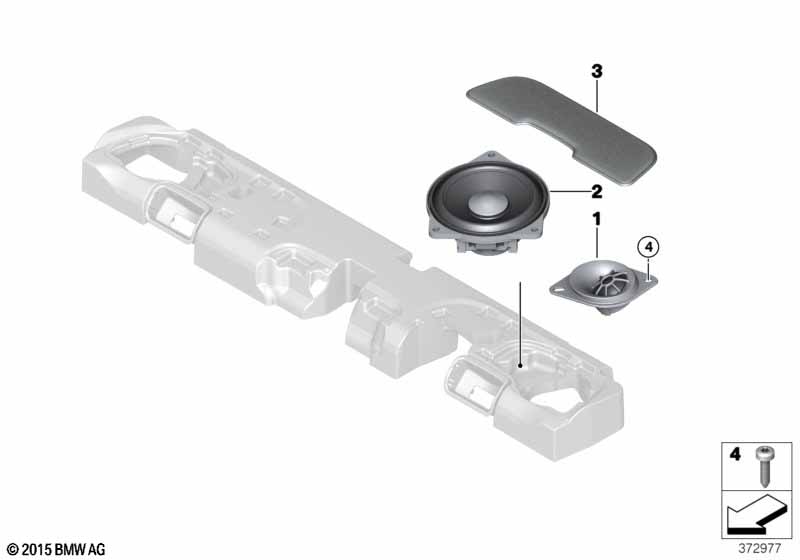

This Single parts f rear helf loudspeaker technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 740LiX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.

Single parts f rear helf loudspeaker
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
Bowers & Wilkins High End Sound System
S6F1A=Yes
01 Tweeter 2 65139279631 Shop at ECS Tuning
For vehicles with
Harman/Kardon surround sound system
and
Bowers & Wilkins High End Sound System
S688A=Yes

S6F1A=No
01 Top-hifi loudspeaker tweeter 2 65139226358 Shop at ECS Tuning
For vehicles with
Bowers & Wilkins High End Sound System
S6F1A=Yes
02 MID-range loudspeaker HIGH END 2 65139279632 Shop at ECS Tuning
For vehicles with
Harman/Kardon surround sound system
and
Bowers & Wilkins High End Sound System
S688A=Yes

S6F1A=No
02 Mid-range speaker, HiFi/Top HiFi 2 65139368383 Shop at ECS Tuning
For vehicles with
Bowers & Wilkins High End Sound System
S6F1A=Yes
03 Loudspeaker cover SCHWARZ 2 65139365198 Shop at ECS Tuning
03 Loudspeaker cover BEIGE 2 65139365199 Shop at ECS Tuning
03 Loudspeaker cover WEISS 2 65139365200 Shop at ECS Tuning
04 Oval-head screw with washer DELTA PT4X20 10 07149185673 Shop at ECS Tuning

See Also

REAR SEAT ENTERTAINMENT DVD PLAYER REAR SEAT ENTERTAINMENT DVD PLAYER
COMPONENTS CENTRAL BASS COMPONENTS CENTRAL BASS
LOUDSPEAKER, INSTRUMENT PANEL LOUDSPEAKER, INSTRUMENT PANEL
SINGLE PARTS F FRONT DOOR HIFI SYSTEM SINGLE PARTS F FRONT DOOR HIFI SYSTEM
SINGLE PARTS F FRONT DOOR TOP-HIFI SYST. SINGLE PARTS F FRONT DOOR TOP-HIFI SYST.
SINGLE PARTS F REAR DOOR TOP-HIFI SYST. SINGLE PARTS F REAR DOOR TOP-HIFI SYST.
HIGH END SOUND SYSTEM, DOOR, REAR HIGH END SOUND SYSTEM, DOOR, REAR
SINGLE PARTS F REAR DOOR HIFI SYSTEM SINGLE PARTS F REAR DOOR HIFI SYSTEM
HIGH END SOUND SYSTEM, DOOR, FRONT HIGH END SOUND SYSTEM, DOOR, FRONT
AMPLIFIER / BRACKET AMPLIFIER / BRACKET
COMPONENT PARTS, AERIAL SYSTEM COMPONENT PARTS, AERIAL SYSTEM
SINGLE PARTS, ANTENNA SINGLE PARTS, ANTENNA
SINGLE PARTS, AERIAL, COMFORT ACCESS SINGLE PARTS, AERIAL, COMFORT ACCESS
TETRA MASKED AERIAL TETRA MASKED AERIAL
TV MODULE / HOLDER TV MODULE / HOLDER
CENTRAL INFORMATION DISPLAY CENTRAL INFORMATION DISPLAY
REAR COMPARTMENT MONITOR REAR COMPARTMENT MONITOR
ENABLING CODE, REP PROFESSIONAL NAVIG. ENABLING CODE, REP PROFESSIONAL NAVIG.
HEADUNIT HIGH 2 HEADUNIT HIGH 2
REMOTE CONTROL, REAR REMOTE CONTROL, REAR

Frequently Asked Questions

What assembly is shown in the BMW 7 Series G12 740LiX Single parts f rear helf loudspeaker?
This technical diagram illustrates the Single parts f rear helf loudspeaker within the Audio, Navigation, Electronic Systems group for the 7 Series G12 740LiX produced during 2018. It provides a detailed exploded view of the components, identifying key parts such as the Tweeter (Part #65139279631).
Which models use the hardware listed in this Single parts f rear helf loudspeaker?
The hardware and components featured in the Single parts f rear helf loudspeaker are specific to the 7 Series G12 740LiX produced during 2018. These technical specifications ensure that parts like the Tweeter (65139279631) are correctly matched to the vehicle's structural and mechanical requirements.
How do I find specific parts within the Single parts f rear helf loudspeaker assembly?
Each item in the Single parts f rear helf loudspeaker corresponds to the numbered list below the illustration. For the 7 Series G12 740LiX, you can identify the Tweeter by locating its position on the schematic, which then links to the official BMW part number 65139279631 for the Audio, Navigation, Electronic Systems section.
