Surr.View camera/Park.Man.Assist.Plus for BMW 7 Series G11 LCI 730dX (2019)

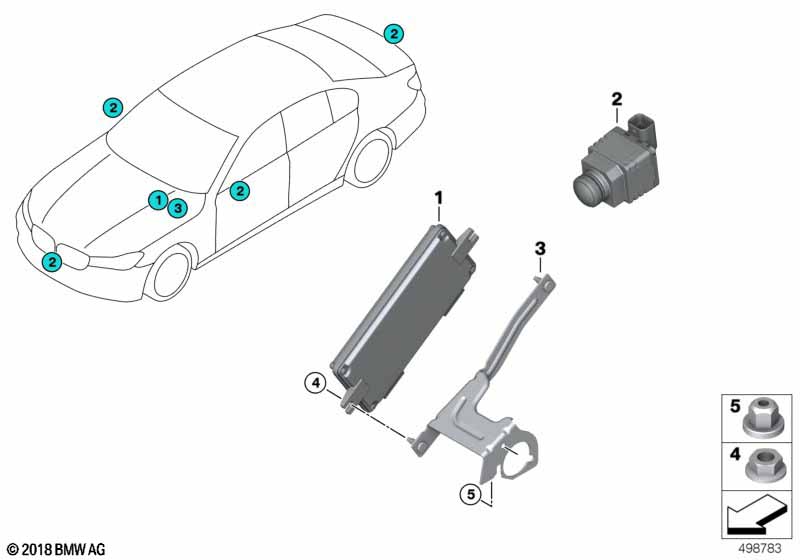

This Surr.View camera/Park.Man.Assist.Plus technical drawing provides a detailed breakdown of the assembly for the 7 Series G11 LCI 730dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Parking assistance system Plus |
S5DNA=Yes |
|||||||||
| 01 | Control unit Surround View camera | ICAM2-ECU V2 | 1 | 11/2023 | 66535A7C9B0 | Shop at ECS Tuning | ||||
| 01 | Control unit Surround View camera | ICAM2-ECU V2 | 1 | 03/2025 | 66535B39F25 | Shop at ECS Tuning | ||||
| 01 | Control unit Surround View camera | ICAM2-ECU V2 | 1 | 66535B48BE6 | Shop at ECS Tuning | |||||
| 02 | Surround view camera | 4 | 66535A0F6D7 | Shop at ECS Tuning | ||||||
| 03 | Bracket, control unit | LHD | 1 | 66539352754 | Shop at ECS Tuning | |||||
| 04 | Hex nut with plate | M6-8-ZNNIV SI | 2 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| 05 | Plastic nut for coarse threaded pin | M6 | 2 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
