Tool kit/Lifting jack for BMW 5 Series E34 M5 (1992)

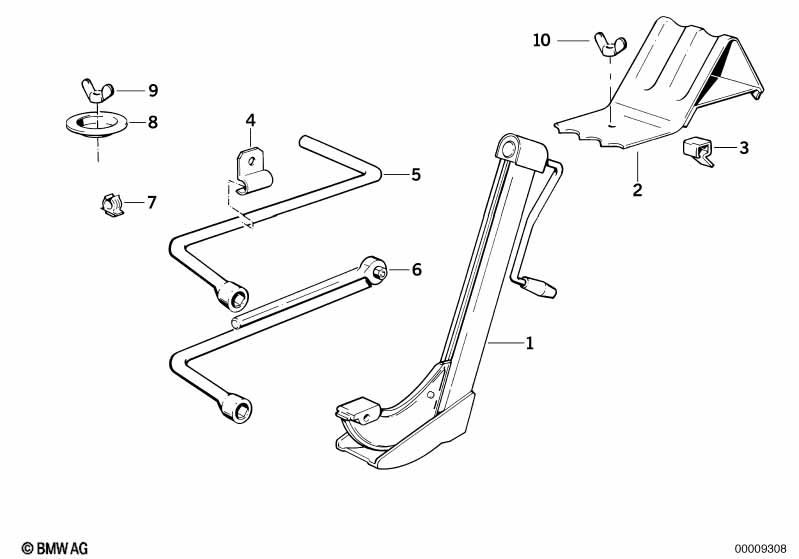

This Tool kit/Lifting jack technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | LIFTING JACK | 800KG | 1 | 71122226742 | $76.97 | Shop at ECS Tuning | ||||
| 02 | Chock, aluminium | 1 | 71126756392 | $11.50 | Shop at ECS Tuning | |||||
| 05 | Crank | 1 | 71121179953 | $14.56 | Shop at ECS Tuning | |||||
| 06 | Crank adjustable | 1 | 71121129746 | $43.54 | ENDED | Shop at ECS Tuning | ||||
| 07 | Holder | D = 12MM | 1 | 71101180443 | $1.23 | Shop at ECS Tuning | ||||
| 08 | Bracket for spare wheel | 1 | 71151180625 | $3.62 | Shop at ECS Tuning | |||||
| 09 | Wing nut | M8 | 1 | 07119924040 | $1.42 | Shop at ECS Tuning | ||||
| 10 | Wing nut | M6 | 1 | 07119924038 | $0.34 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E34 M5 Tool kit/Lifting jack?
- This technical diagram illustrates the Tool kit/Lifting jack within the Equipment Parts group for the 5 Series E34 M5 produced during 1992. It provides a detailed exploded view of the components, identifying key parts such as the LIFTING JACK (Part #71122226742).
- Which models use the hardware listed in this Tool kit/Lifting jack?
- The hardware and components featured in the Tool kit/Lifting jack are specific to the 5 Series E34 M5 produced during 1992. These technical specifications ensure that parts like the LIFTING JACK (71122226742) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Tool kit/Lifting jack assembly?
- Each item in the Tool kit/Lifting jack corresponds to the numbered list below the illustration. For the 5 Series E34 M5, you can identify the LIFTING JACK by locating its position on the schematic, which then links to the official BMW part number 71122226742 for the Equipment Parts section.
