Trailer coupling for BMW 5 Series E34 M5 (1992)

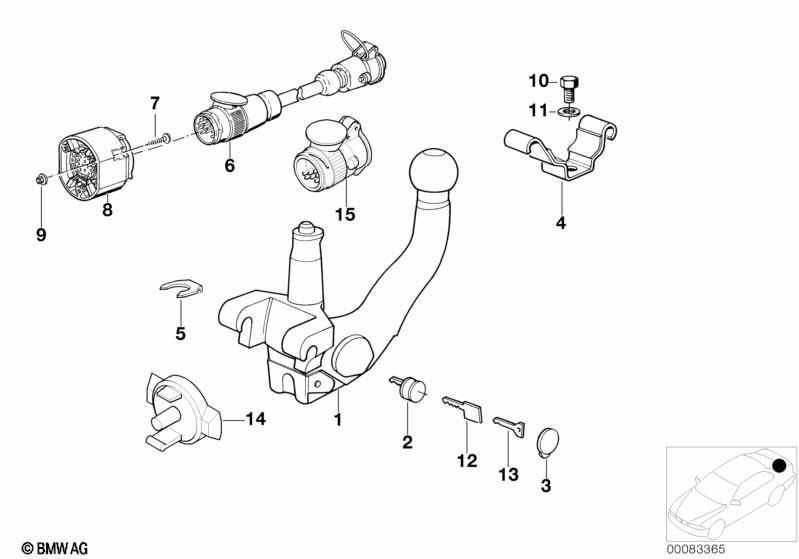

This Trailer coupling technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Removable ball | ORIS | 1 | 71601136376 | ENDED, +core | Shop at ECS Tuning | ||||
| 01 | Removable ball | WESTFALIA | 1 | 71601182436 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Key (code) 2axx | WESTFALIA | 1 | 09/1995 | 71601134421 | Shop at ECS Tuning | ||||
| 02 | Key (Code) | ORIS | 1 | 71601137621 | Shop at ECS Tuning | |||||
| 03 | protective cap, key | 1 | 71601134422 | $1.04 | Shop at ECS Tuning | |||||
| 04 | Support for ball head | 1 | 71601139300 | $44.08 | Shop at ECS Tuning | |||||
| 05 | Clamp | 2 | 61131382132 | Shop at ECS Tuning | ||||||
| 06 | Adapter | 1 | 61131382153 | $145.08 | Shop at ECS Tuning | |||||
| 07 | Fillister head screw | M5X35 | 3 | 07119907698 | $0.27 | Shop at ECS Tuning | ||||
| 08 | Plug-in socket | 1 | 61131378999 | $76.67 | Shop at ECS Tuning | |||||
| 09 | Hex nut | M5-10-ZNNIV SI | 3 | 07119906520 | Shop at ECS Tuning | |||||
| 10 | Hex Bolt | M8X35 | 1 | 07119913676 | $0.36 | Shop at ECS Tuning | ||||
| 11 | Washer | 8,4X24X2-ZNS3 | 1 | 07119904164 | $0.40 | Shop at ECS Tuning | ||||
| 12 | Key (Code) | ORIS | 1 | 71601137621 | Shop at ECS Tuning | |||||
| 13 | Key (blank) code 2axx | WESTFALIA | 1 | 09/1995 | 71601135396 | Shop at ECS Tuning | ||||
| 13 | Key (blank) | ORIS | 1 | 71601137622 | Shop at ECS Tuning | |||||
| Fa. Westfalia | ||||||||||
| 14 | Blind plug | ROT | 1 | 71601090489 | $8.15 | Shop at ECS Tuning | ||||
| 15 | Adapter | 13 - 7 | 1 | 61136942997 | $34.12 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
