Rear safety belt mounting parts for BMW 5 Series E12 520 (1981)

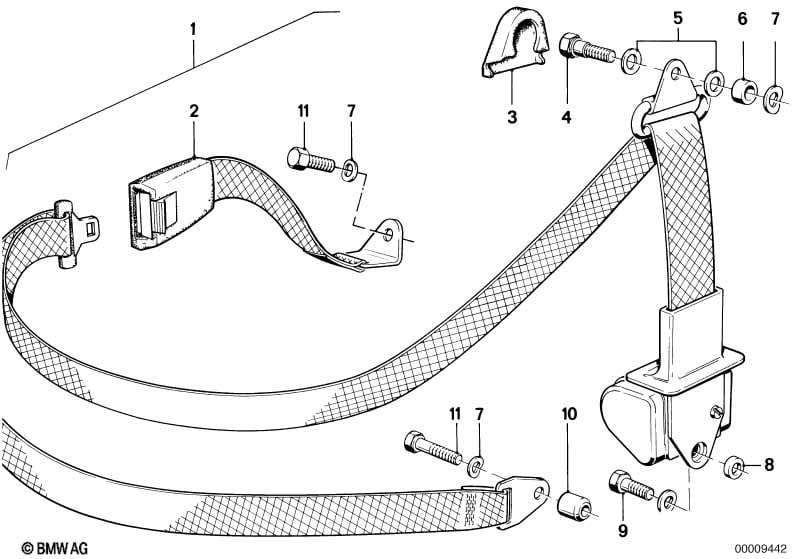

This Rear safety belt mounting parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 520. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Safety belt rear left | AUTOFLUG | 1 | 09/1980 | 72111883883 | $103.79 | ENDED | Shop at ECS Tuning | ||
| 01 | Safety belt rear right | AUTOFLUG | 1 | 09/1980 | 72111883884 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version Australia |
L810A=Yes |
|||||||||
| 01 | Safety belt rear right | AUTOFLUG | 1 | 09/1980 | 72111883978 | ENDED | Shop at ECS Tuning | |||
| 02 | Lower strap, rear | AUTOFLUG | 2 | 08/1979 | 72111868996 | $32.37 | ENDED | Shop at ECS Tuning | ||
| 03 | Covering cap | SCHWARZ | 2 | 08/1979 | 72111828567 | $3.11 | Shop at ECS Tuning | |||
| 04 | Screw | 2 | 08/1979 | 72111845045 | $1.43 | ENDED | Shop at ECS Tuning | |||
| 05 | Stop disc | 4 | 08/1979 | 72111845046 | $0.22 | Shop at ECS Tuning | ||||
| 06 | Spacer bush | 2 | 08/1979 | 72111802803 | $0.77 | Shop at ECS Tuning | ||||
| 07 | Wave washer | 11,2 / 19 | 8 | 08/1979 | 72111808672 | $0.17 | Shop at ECS Tuning | |||
| 08 | Washer | 2 | 08/1979 | 72111808673 | $0.37 | Shop at ECS Tuning | ||||
| 09 | Collar screw | 7/16"X22 | 2 | 08/1979 | 72111822963 | $5.93 | ENDED | Shop at ECS Tuning | ||
| 10 | Spacer bush | 2 | 08/1979 | 72111813915 | $0.72 | Shop at ECS Tuning | ||||
| 11 | Hex Bolt | 7/16X30 | 4 | 08/1979 | 72118157617 | $0.92 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
