Safety belt, rear for BMW 5 Series E39 540iP (1998)

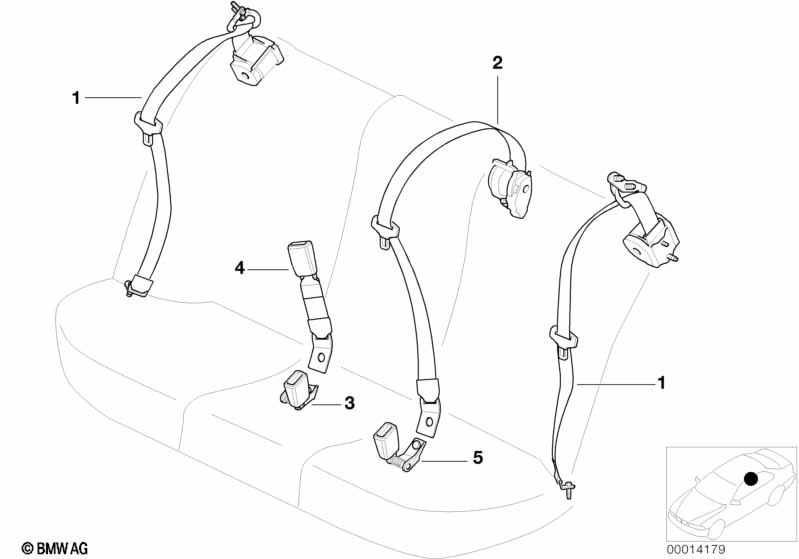

This Safety belt, rear technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 540iP. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For USA only: Observe without fail the following when selling belts: The NHTSA legislation in the USA requires that you pass on to the customer the corresponding installation/repair instructions including all the necessary information such as Tightening Torques. Please refer to the relevant BMW / MINI / Rolls-Royce service info 000321 / 000221 / A0521. Cover, belt outlet see main group 52 THROUGH-LOADING FACILITY/SINGLE PARTS |
|||||||||
| 01 | Rear upper belt with child protection | SCHWARZ | 2 | 72118198483 | $170.92 | Shop at ECS Tuning | ||||
| 01 | Rear upper belt with child protection | GRAU | 2 | 72118198484 | $170.92 | Shop at ECS Tuning | ||||
| 01 | Rear upper belt with child protection | SANDBEIGE | 2 | 72118198485 | $170.92 | Shop at ECS Tuning | ||||
| For vehicles with Through-loading system |
S465A=Yes |
|||||||||
| 01 | Rear upper belt with child protection | SCHWARZ | 2 | 72118198483 | $170.92 | Shop at ECS Tuning | ||||
| 01 | Rear upper belt with child protection | GRAU | 2 | 72118198484 | $170.92 | Shop at ECS Tuning | ||||
| 01 | Rear upper belt with child protection | SANDBEIGE | 2 | 72118198485 | $170.92 | Shop at ECS Tuning | ||||
| 02 | Rear upper belt with child protection | SCHWARZ | 1 | 72118198483 | $170.92 | Shop at ECS Tuning | ||||
| 02 | Rear upper belt with child protection | GRAU | 1 | 72118198484 | $170.92 | Shop at ECS Tuning | ||||
| 02 | Rear upper belt with child protection | SANDBEIGE | 1 | 72118198485 | $170.92 | Shop at ECS Tuning | ||||
| 03 | Lower belt, rear right | 1 | 72118176516 | $50.81 | ENDED | Shop at ECS Tuning | ||||
| When selling this safety component for legal reasons also print out the product information (see: Parts Info -> Su pplement) and pass it on to the cu stomer. |
||||||||||
| For vehicles with Through-loading system |
S465A=Yes |
|||||||||
| 03 | Lower belt, rear right | 1 | 72118176520 | $50.81 | ENDED | Shop at ECS Tuning | ||||
| When selling this safety component for legal reasons also print out the product information (see: Parts Info -> Su pplement) and pass it on to the cu stomer. |
||||||||||
| 05 | Lower belt, rear left | 1 | 72118176515 | $50.81 | Shop at ECS Tuning | |||||
| When selling this safety component for legal reasons also print out the product information (see: Parts Info -> Su pplement) and pass it on to the cu stomer. |
||||||||||
| For vehicles with Through-loading system |
S465A=Yes |
|||||||||
| 05 | Lower belt, rear left | 1 | 72118176519 | $50.81 | Shop at ECS Tuning | |||||
| When selling this safety component for legal reasons also print out the product information (see: Parts Info -> Su pplement) and pass it on to the cu stomer. |
||||||||||
Notes
- ENDED = the part has been discontinued (no longer available).
