Single parts, SA 644, trunk for BMW 5 Series E39 525i (2003)

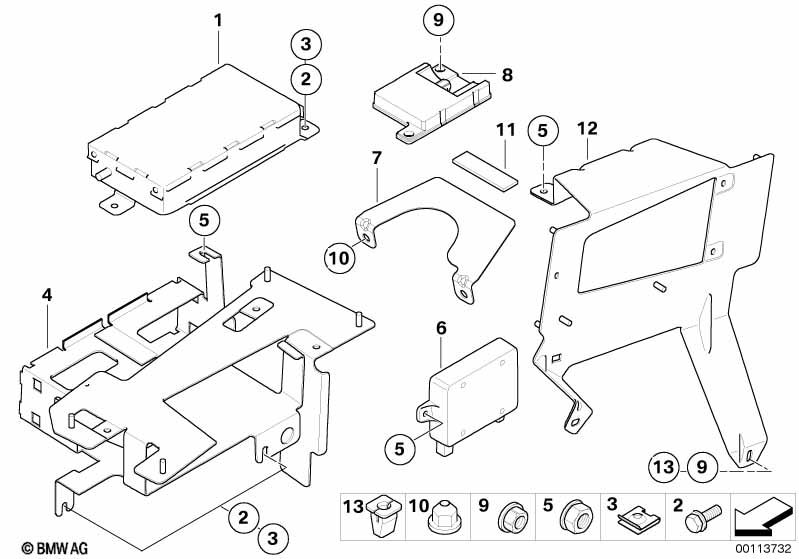

This Single parts, SA 644, trunk technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.

Single parts, SA 644, trunk
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Charging electronics, hands-free 1 03/2003 84106931854 ENDED Shop at ECS Tuning
01 Charging electronics, hands-free 1 84109154358 $569.47 ENDED Shop at ECS Tuning
02 Hex Bolt M5X14 5 07119902932 $0.53 Shop at ECS Tuning
03 Body nut M5 5 61131372033 $1.37 Shop at ECS Tuning
For vehicles with
Navigation system Professional
or
CD changer for 6 CDs
or
HiFi speaker system
or
HiFi system Professional DSP
or
Provisions for BMW 6 CD changer
or
Individual audio system
S609A=Yes

S672A=Yes

S676A=Yes

S677A=Yes

S694A=Yes

S752A=Yes
04 Bracket for telematics control unit 1 84136924547 $32.89 +core Shop at ECS Tuning
05 Hex nut with plate M5 3 63259128043 $0.72 Shop at ECS Tuning
can be installed as an option
06 Dual band cable compensator 1 84216932865 $342.63 Shop at ECS Tuning
07 Bracket f basis antenna 1 84136908814 Shop at ECS Tuning
08 Antenna BLUETOOTH 1 84506928461 $24.30 +core Shop at ECS Tuning
09 Hex nut AM5-8-ZNS3 2 07129902975 $0.36 Shop at ECS Tuning
10 Cap nut M5 2 51711934930 $0.23 Shop at ECS Tuning
11 Set felt strip adhesive 1 07/2003 51452353024 Shop at ECS Tuning
12 Bracket for telematics control unit 1 84136924546 $23.96 +core Shop at ECS Tuning
13 Expanding nut 2 63131378066 $0.23 Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
