Single parts SA 633, trunk for BMW 3 Series E46 318Ci (2000)

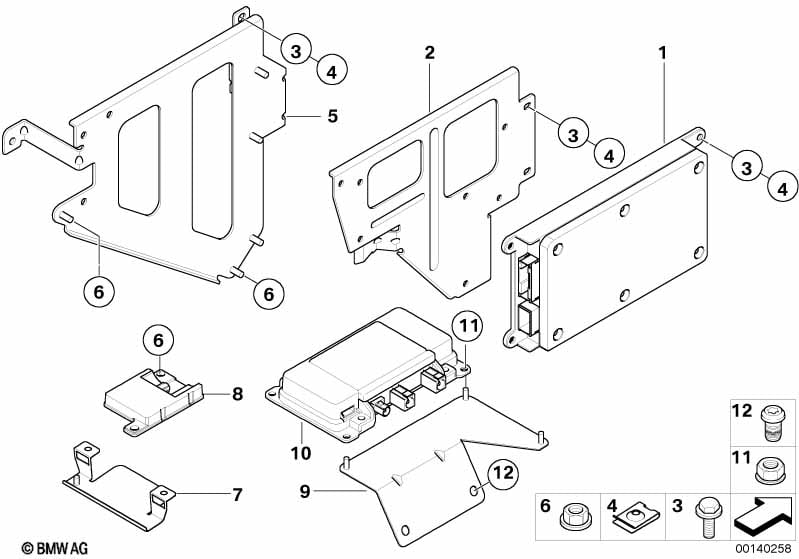

This Single parts SA 633, trunk technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Preparation, mobile phone, Business Important: Telematics control units no longer need to be read out in the coding station. The read-out and transmission of the data are carried out by the workshop tester. In the future, the telematics control units can also be ordered and stocked in multiple quantities. |
S633A=Yes |
|||||||||
| 01 | Telematics control unit | GSM | 1 | 01/2005 | 84116946991 | ENDED | Shop at ECS Tuning | |||
| 01 | RP REMAN Telematic Control Unit | GSM | 1 | 84109207075 | ENDED | Shop at ECS Tuning | ||||
| 01 | RP REMAN Telematic Control Unit | GSM | 1 | 84109236496 | Shop at ECS Tuning | |||||
| For vehicles with Voice control and Preparation, mobile phone, Business Important: Telematics control units no longer need to be read out in the coding station. The read-out and transmission of the data are carried out by the workshop tester. In the future, the telematics control units can also be ordered and stocked in multiple quantities. |
S620A=Yes S633A=Yes |
|||||||||
| 01 | RP REMAN Telematic Control Unit | GSM | 1 | 84109207075 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 01 | RP REMAN Telematic Control Unit | GSM | 1 | 84109236496 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Adapter wire for telephone | 1 | 84109176517 | ENDED | Shop at ECS Tuning | |||||
| 02 | Bracket for telematics control unit | 1 | 84136924948 | $9.80 | Shop at ECS Tuning | |||||
| 03 | Hex Bolt | M5X14 | 5 | 07119902932 | $0.53 | Shop at ECS Tuning | ||||
| 04 | Body nut | M5 | 5 | 61131372033 | $1.37 | Shop at ECS Tuning | ||||
| For vehicles with TV function or On-board monitor withTV |
S601A=Yes S602A=Yes |
|||||||||
| 05 | Bracket for telematics control unit | 1 | 84136924688 | Shop at ECS Tuning | ||||||
| 06 | Hex nut with plate | M5 | 4 | 63259128043 | $0.72 | Shop at ECS Tuning | ||||
| 07 | Bracket f basis antenna | 1 | 84136912160 | $3.86 | Shop at ECS Tuning | |||||
| 08 | Antenna | BLUETOOTH | 1 | 84506928461 | $24.30 | +core | Shop at ECS Tuning | |||
| 09 | Bracket, antenna link | 1 | 65156946484 | ENDED | Shop at ECS Tuning | |||||
| 10 | Aerial diplexer | 1 | 84106945425 | ENDED | Shop at ECS Tuning | |||||
| 11 | Hex nut | M4-8 | 3 | 07119904027 | Shop at ECS Tuning | |||||
| 12 | Oval-head screw with anti-rotation lock | ISA M6X12 | 2 | 51217061955 | $0.69 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
