Fluid change kit, autom. transmission for BMW 3 Series F30 328iX (2012)

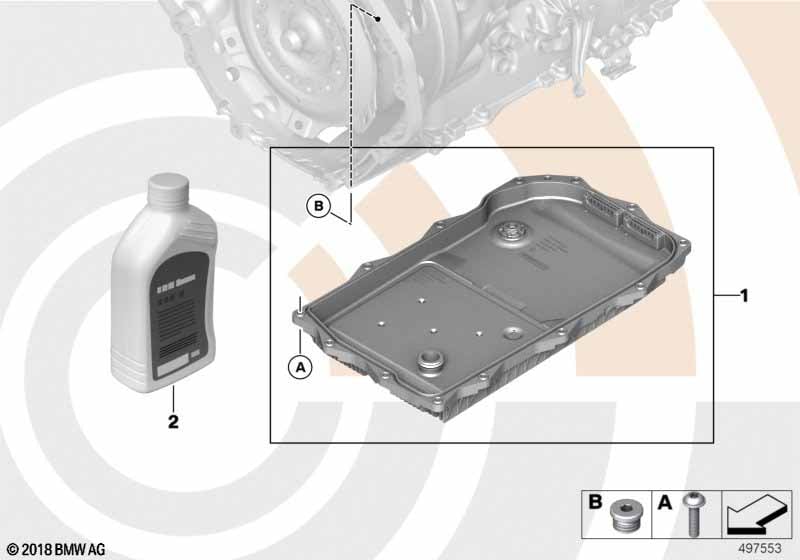

This Fluid change kit, autom. transmission technical drawing provides a detailed breakdown of the assembly for the 3 Series F30 328iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| VALUE REPAIR PARTS! One click is all it takes! Contains all separate components for oil change! Improves repair quality! Reduced wear! Extends the service life of the transmission! Increases driving comfort! |
||||||||||
| 01 | Set, oil sump, oil filter, auto. transm. | VALUE PARTS | 1 | 24115A13115 | Shop at ECS Tuning | |||||
| Please observe repair instruction. | ||||||||||
| 02 | Automatic transmission fluid 3+ | 1L | X | 83225A12A00 | Shop at ECS Tuning | |||||
| Important! Oil adjustment as per repair instructions required. Required oil quantity may vary! |
||||||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series F30 328iX Fluid change kit, autom. transmission?
- This technical diagram illustrates the Fluid change kit, autom. transmission within the Value Parts&Packages Service and Repair group for the 3 Series F30 328iX produced during 2012. It provides a detailed exploded view of the components, identifying key parts such as the Set, oil sump, oil filter, auto. transm. (Part #24115A13115).
- Which models use the hardware listed in this Fluid change kit, autom. transmission?
- The hardware and components featured in the Fluid change kit, autom. transmission are specific to the 3 Series F30 328iX produced during 2012. These technical specifications ensure that parts like the Set, oil sump, oil filter, auto. transm. (24115A13115) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fluid change kit, autom. transmission assembly?
- Each item in the Fluid change kit, autom. transmission corresponds to the numbered list below the illustration. For the 3 Series F30 328iX, you can identify the Set, oil sump, oil filter, auto. transm. by locating its position on the schematic, which then links to the official BMW part number 24115A13115 for the Value Parts&Packages Service and Repair section.
