Individual armrest, front, leather for BMW 3 Series E46 318i (2001)

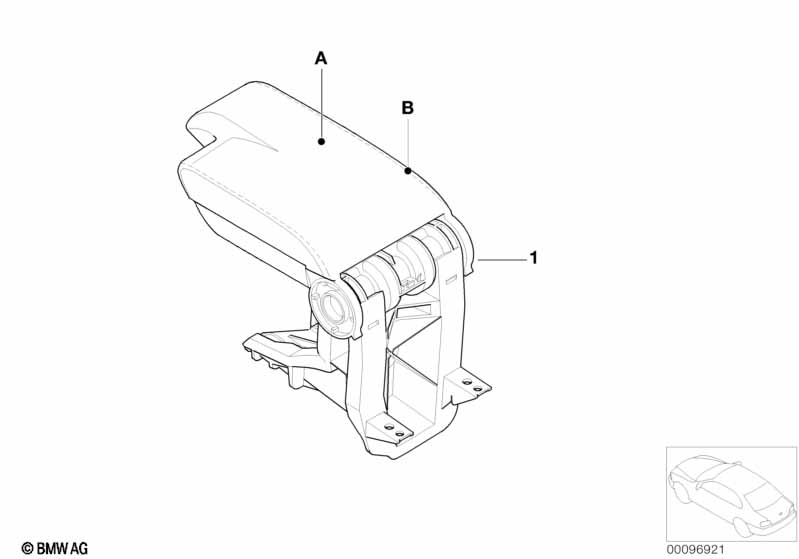

This Individual armrest, front, leather technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX -------------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering, for: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part no. leather - (B) Colour of thread = matching --------------------------- --------------------------- |
|||||||||
| 01 | Armrest leather | INDIVIDUAL | 1 | 51168009038 | $313.60 | ENDED, NoS | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 318i Individual armrest, front, leather?
- This technical diagram illustrates the Individual armrest, front, leather within the Individual equipment group for the 3 Series E46 318i produced during 2001. It provides a detailed exploded view of the components, identifying key parts such as the Armrest leather (Part #51168009038).
- Which models use the hardware listed in this Individual armrest, front, leather?
- The hardware and components featured in the Individual armrest, front, leather are specific to the 3 Series E46 318i produced during 2001. These technical specifications ensure that parts like the Armrest leather (51168009038) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Individual armrest, front, leather assembly?
- Each item in the Individual armrest, front, leather corresponds to the numbered list below the illustration. For the 3 Series E46 318i, you can identify the Armrest leather by locating its position on the schematic, which then links to the official BMW part number 51168009038 for the Individual equipment section.
