Indiv.bottom panel,strge partit.leather for BMW 3 Series E46 318i (2001)

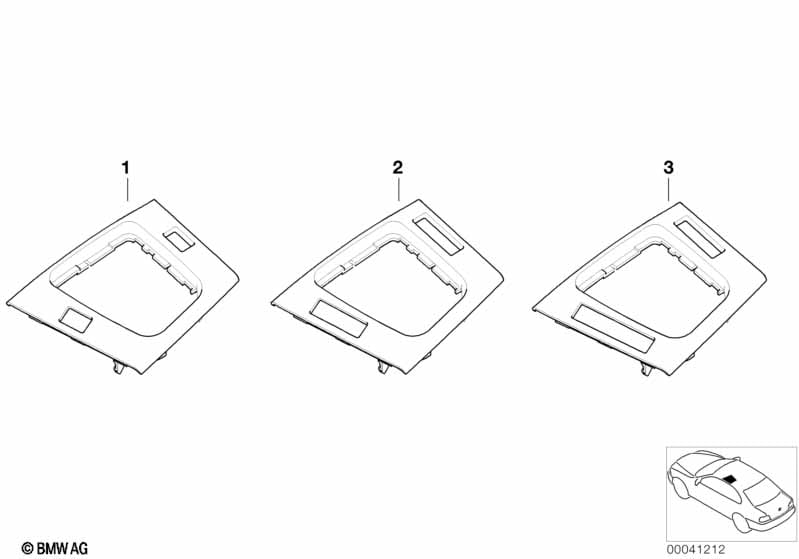

This Indiv.bottom panel,strge partit.leather technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX or SA 940 = option in general --------------------------- Important! Series parts or retrofits not possible via this order no. --------------------------- Specify when ordering: part no., dealer no., chassis no., leather colour --------------------------- |
|||||||||
| For vehicles with Left-hand-drive car |
=Yes |
|||||||||
| 01 | Bottom panel, storage partition, leather | 1 | 51168016299 | ENDED, NoS | Shop at ECS Tuning | |||||
| For vehicles with Left-hand-drive car and Electr. window lifter, front and rear |
=Yes =Yes |
|||||||||
| 03 | Bottom panel, storage partition, leather | 1 | 51168016300 | $124.99 | ENDED, NoS | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
