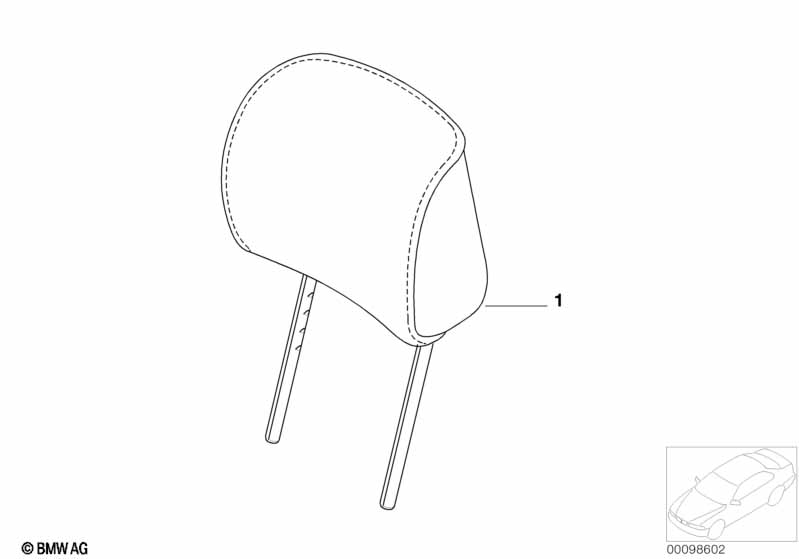

Indiv. headrest, sports seat, Alcantara for BMW 3 Series E46 320i (2004)
This Indiv. headrest, sports seat, Alcantara technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX -------------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering, for: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part no. Alcantara - (B) Colour of thread = matching --------------------------- Version: only in Alcantara uni --------------------------- |
|||||||||
| For vehicles with Sports seat |
S481A=Yes |
|||||||||
| 01 | Head rest, front Alcantara | UNI | 2 | 52108021938 | $206.46 | ENDED, +core, NoS | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
- NoS = No Stock (Part centrally not stocked)
