Indiv. rear door trim panel,part.leather for BMW 3 Series E90 320i (2008)

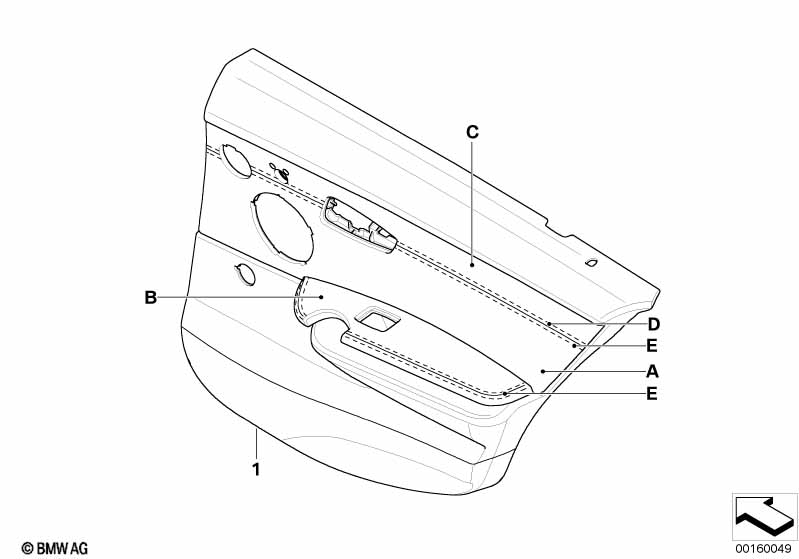

This Indiv. rear door trim panel,part.leather technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX -------------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering, for: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part number, special leather (middle) - (B) Part number, special leather (armrest) - (C) Part number, special leather (cowl) - (D) Colour specification, thread (cowl) - (E) Colour specification, thread (middle / armrest) --------------------------- Door capping and door trim panel at bottom in black foil, as with LCSW --------------------------- |
|||||||||
| 01 | Door lining leather rear left | INDIVIDUAL | 1 | 09/2005 | 51427966027 | ENDED, NoS | Shop at ECS Tuning | |||
| 01 | Door lining leather rear left | INDIVIDUAL | 1 | 09/2005 | 51427969233 | $915.67 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| 01 | Door lining leather rear right | INDIVIDUAL | 1 | 09/2005 | 51427966028 | ENDED, NoS | Shop at ECS Tuning | |||
| 01 | Door lining leather rear right | INDIVIDUAL | 1 | 09/2005 | 51427969234 | $1008.56 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| For vehicles with Roller sun visor, rear door |
S417A=Yes |
|||||||||
| 01 | Door lining leather rear left | INDIVIDUAL | 1 | 09/2005 | 51427966031 | ENDED, NoS | Shop at ECS Tuning | |||
| 01 | Door lining leather rear left | INDIVIDUAL | 1 | 09/2005 | 51427969237 | $1101.41 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| 01 | Door lining leather rear right | INDIVIDUAL | 1 | 09/2005 | 51427966032 | ENDED, NoS | Shop at ECS Tuning | |||
| 01 | Door lining leather rear right | INDIVIDUAL | 1 | 09/2005 | 51427969238 | $1101.41 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| For vehicles with HiFi system Professional DSP |
S677A=Yes |
|||||||||
| 01 | Door lining leather rear left | INDIVIDUAL | 1 | 09/2005 | 51427966035 | ENDED, NoS | Shop at ECS Tuning | |||
| 01 | Door lining leather rear right | INDIVIDUAL | 1 | 09/2005 | 51427966036 | ENDED, NoS | Shop at ECS Tuning | |||
| For vehicles with Roller sun visor, rear door and HiFi system Professional DSP |
S417A=Yes S677A=Yes |
|||||||||
| 01 | Door lining leather rear left | INDIVIDUAL | 1 | 09/2005 | 51427966039 | ENDED, NoS | Shop at ECS Tuning | |||
| 01 | Door lining leather rear right | INDIVIDUAL | 1 | 09/2005 | 51427966040 | ENDED, NoS | Shop at ECS Tuning | |||
| For vehicles with Roller sun visor, rear door and HiFi system Professional DSP and Individual audio system |
S417A=Yes S677A=Yes S752A=No |
|||||||||
| 01 | Door lining leather rear left | INDIVIDUAL | 1 | 09/2005 | 51427969245 | $1101.41 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Door lining leather rear right | INDIVIDUAL | 1 | 09/2005 | 51427969246 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Roller sun visor, rear door and HiFi system Professional DSP and Individual audio system |
S417A=Yes S677A=No S752A=Yes |
|||||||||
| 01 | Door lining leather rear left | INDIVIDUAL | 1 | 09/2005 | 51427969245 | $1101.41 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| 01 | Door lining leather rear right | INDIVIDUAL | 1 | 09/2005 | 51427969246 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| For vehicles with HiFi system Professional DSP or Harman/Kardon surround sound system or Individual audio system |
S677A=Yes S688A=Yes S752A=Yes |
|||||||||
| 01 | Door lining leather rear left | INDIVIDUAL | 1 | 09/2005 | 51427969241 | $1101.41 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| 01 | Door lining leather rear right | INDIVIDUAL | 1 | 09/2005 | 51427969242 | $1101.41 | ENDED, NoS | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
- +core = plus core charge (possibility of a return of the old part)
