Indiv.door trim panel, leather, rear, LC for BMW 3 Series E90 320i (2008)

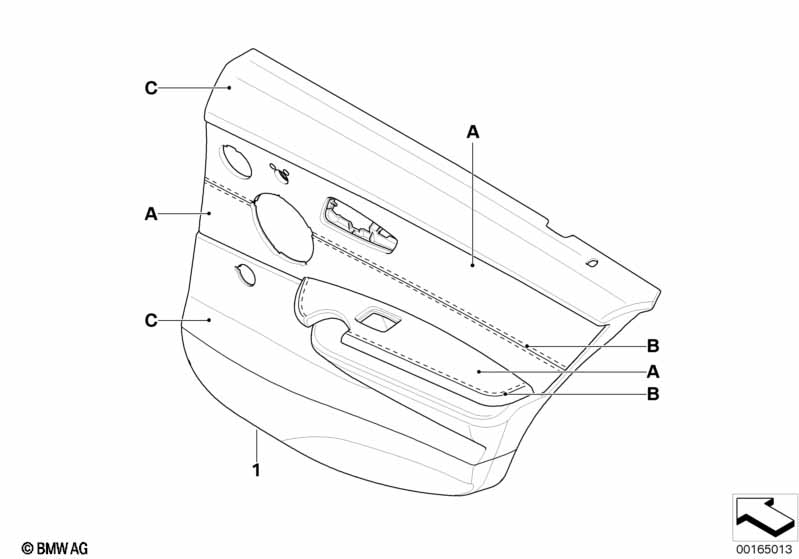

This Indiv.door trim panel, leather, rear, LC technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX -------------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering, for: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part number, leather - (B) Colour spec., thread = matching - (C) Colour spec., upper section / lower section --------------------------- Version: . Trim, middle and armrest (A) - in leather . Upper section / lower section (C) - in PVC film --------------------------- Version: only in leather Dakota Seam pattern = LC --------------------------- |
|||||||||
| 01 | Door lining leather rear left | LC | 1 | 03/2006 | 51427973637 | $915.67 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| 01 | Door lining leather rear right | LC | 1 | 03/2006 | 51427973638 | $915.67 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| For vehicles with Roller sun visor, rear door |
S417A=Yes |
|||||||||
| 01 | Door lining leather rear left | LC | 1 | 03/2006 | 51427973639 | $915.67 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| 01 | Door lining leather rear right | LC | 1 | 03/2006 | 51427973640 | $915.67 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| For vehicles with HiFi system Professional DSP |
S677A=Yes |
|||||||||
| 01 | Door lining leather rear left | LC | 1 | 03/2006 | 51427973641 | $915.67 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| 01 | Door lining leather rear right | LC | 1 | 03/2006 | 51427973642 | $915.67 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| For vehicles with Roller sun visor, rear door and HiFi system Professional DSP |
S417A=Yes S677A=Yes |
|||||||||
| 01 | Door lining leather rear left | LC | 1 | 03/2006 | 51427966395 | $915.67 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| 01 | Door lining leather rear right | LC | 1 | 03/2006 | 51427966396 | $915.67 | ENDED, +core, NoS | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
- NoS = No Stock (Part centrally not stocked)
