Individual glove compartment, leather for BMW 3 Series E90 320i (2008)

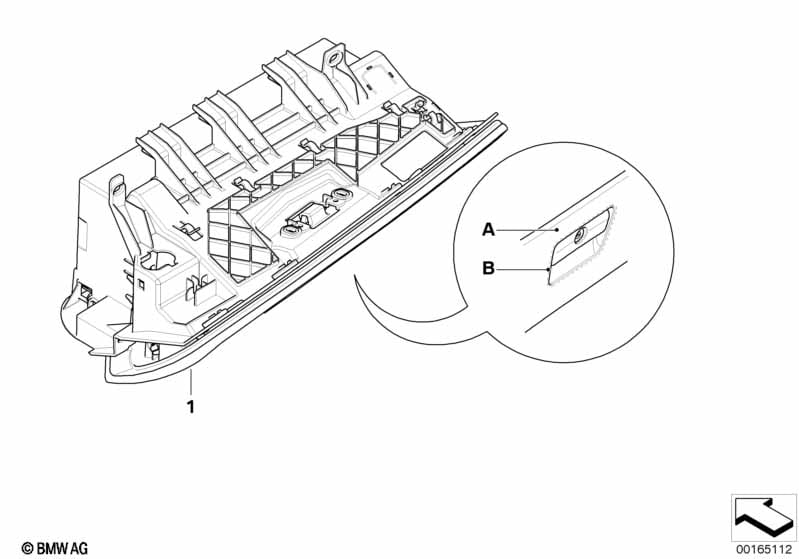

This Individual glove compartment, leather technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX -------------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering, for: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part no. leather - (B) Colour of thread = matching --------------------------- |
|||||||||
| 01 | Glove box | INDIVIDUAL | 1 | 09/2005 | 51167961452 | NoS | Shop at ECS Tuning | |||
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E90 320i Individual glove compartment, leather?
- This technical diagram illustrates the Individual glove compartment, leather within the Individual equipment group for the 3 Series E90 320i produced during 2008. It provides a detailed exploded view of the components, identifying key parts such as the Glove box (Part #51167961452).
- Which models use the hardware listed in this Individual glove compartment, leather?
- The hardware and components featured in the Individual glove compartment, leather are specific to the 3 Series E90 320i produced during 2008. These technical specifications ensure that parts like the Glove box (51167961452) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Individual glove compartment, leather assembly?
- Each item in the Individual glove compartment, leather corresponds to the numbered list below the illustration. For the 3 Series E90 320i, you can identify the Glove box by locating its position on the schematic, which then links to the official BMW part number 51167961452 for the Individual equipment section.
