Individual armrest, multifunctional rear for BMW 7 Series F02 730Li

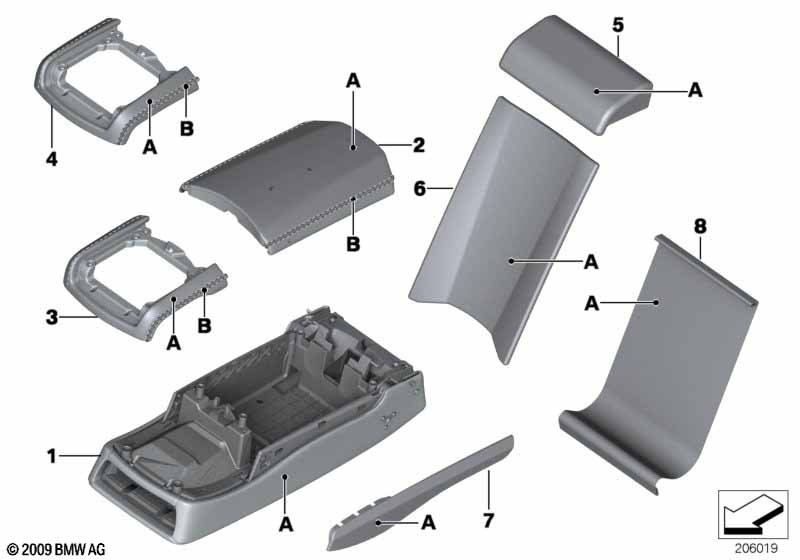

This Individual armrest, multifunctional rear technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 730Li. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | -------------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering, for: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part number leather - (B) Colour of thread --------------------------- For vehicles with special trim (without colour statement) or Indiv. full leather/"platinum/black" or Indiv. full leather/caramel or Indiv. full leather/opal-weiss/black or Indiv. full leather/"amaro-braun" or Indiv. full leather/"champagner" or Indiv. full leather/"seiden-grau" or Indiv. full leather/"graphite" or Indiv. full leather/"cohiba" |
Z1XX=Yes ZBC8=Yes ZBCR=Yes ZBOW=Yes ZBP5=Yes ZBP6=Yes ZBP7=Yes ZBP8=Yes ZBWT=Yes |
||||||||
| For vehicles with Comfort seat, rear, electr.adjustable or Rear-cabin entertainment, Professional or Rear-cabin telephone w/ cordless handset |
S460A=Yes S6FHA=Yes S6NBA=Yes |
|||||||||
| 01 | Armrest, lower section, rear middle | INDIVIDUAL | 1 | 03/2009 | 52207979632 | NoS | Shop at ECS Tuning | |||
| 02 | Cover, armrest, rear middle | INDIVIDUAL | 1 | 03/2009 | 52207979634 | NoS | Shop at ECS Tuning | |||
| For vehicles with Comfort seat, rear, electr.adjustable |
S460A=Yes |
|||||||||
| 03 | Cover, leather, front | INDIVIDUAL | 1 | 03/2009 | 52207979643 | NoS | Shop at ECS Tuning | |||
| For vehicles with Comfort seat, rear, electr.adjustable |
S460A=No |
|||||||||
| 04 | Cover, leather, front | INDIVIDUAL | 1 | 03/2009 | 52207979637 | NoS | Shop at ECS Tuning | |||
| For vehicles with Comfort seat, rear, electr.adjustable |
S460A=Yes |
|||||||||
| 05 | Backrest upholstery | INDIVIDUAL | 1 | 03/2009 | 09/2010 | 52207979638 | ENDED, NoS | Shop at ECS Tuning | ||
| 06 | Channel cover | INDIVIDUAL | 1 | 03/2009 | 52207979639 | NoS | Shop at ECS Tuning | |||
| For vehicles with Comfort seat, rear, electr.adjustable |
S460A=No |
|||||||||
| 07 | Side cover, leather, left | INDIVIDUAL | 1 | 03/2009 | 52207979641 | NoS | Shop at ECS Tuning | |||
| 07 | Side cover, leather, right | INDIVIDUAL | 1 | 03/2009 | 52207979642 | NoS | Shop at ECS Tuning | |||
| For vehicles with Comfort seat, rear, electr.adjustable and Coolbox |
S460A=No S791A=Yes |
|||||||||
| 08 | Protective cover, leather | SCHWARZ | 1 | 03/2009 | 52207979636 | NoS | Shop at ECS Tuning | |||
| For vehicles with Comfort seat, rear, electr.adjustable and Coolbox |
S460A=No S791A=No |
|||||||||
| 08 | Protective cover, leather | INDIVIDUAL | 1 | 03/2009 | 52207979635 | NoS | Shop at ECS Tuning | |||
| For vehicles with Comfort seat, rear, electr.adjustable and Coolbox |
S460A=Yes S791A=Yes |
|||||||||
| 08 | Protective cover | SCHWARZ | 1 | 03/2009 | 52207979045 | NoS | Shop at ECS Tuning | |||
