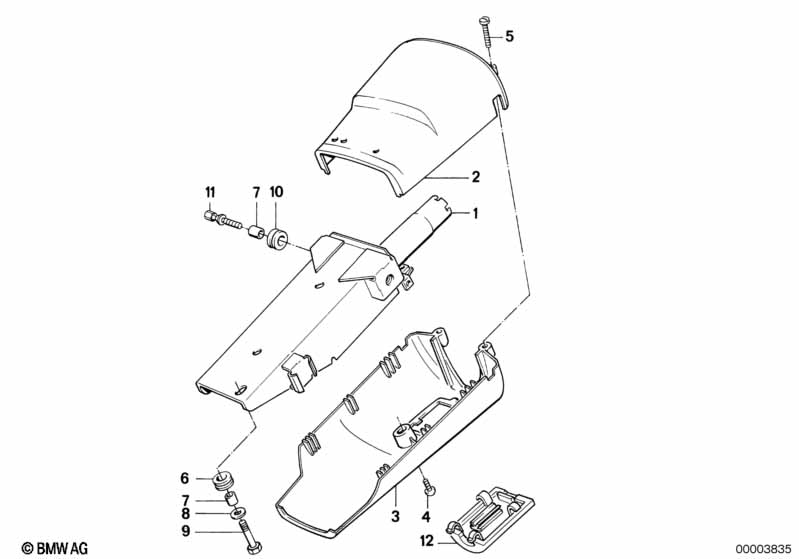

3' E30 318i Steering column-tube/trim panel

Steering column-tube/trim panel
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i only applies to airbag
01 Supporting bracket 1 32311155433 $60.03 ENDED
02 Trim panel, upper part 1 32311155103 $65.02
03 Lower trim panel 1 32311156468 $42.20
04 Fillister head screw M5X12-Z3-ZN 2 07119906816 $0.18
04 Screw, self tapping 5X15 2 32311158376 $0.23
05 Fillister head screw M5X35-Z3 2 07119906833 $0.24
05 Screw, self tapping 5X35 2 32311158355 $0.36
06 Guide bush 1 04/1993 32311118049 $1.75 ENDED
06 Guide bush 1 32311093601 $0.48
07 Spacer tube 3 32311111186 $0.88
08 Washer 1 11614000131 $1.80
09 Fracture bolt M8X28 9.8 1 32311158528 $1.83
10 Guide bush 2 32311111185 $1.73
11 Fracture bolt M8X20 9.8 2 32311152054 $1.77
12 Cover 1 32311156471 $7.29 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
