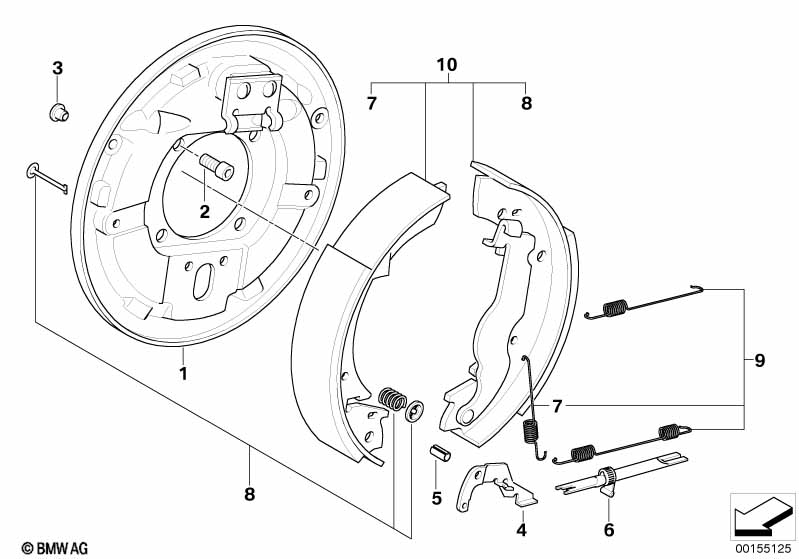

3' E30 318i Drum brake-brake shoes/brake carrier

Drum brake-brake shoes/brake carrier
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Calliper carrier left 1 09/1985 34211153871 $50.86
01 Calliper carrier left 1 09/1985 34211153871 $50.86
01 Calliper carrier right 1 09/1985 34211153872 $49.38
01 Calliper carrier right 1 09/1985 34211153872 $49.38
02 Fillister head screw M10X16-10.9 PHR 8 07119919660 $0.43
03 Plug 4 34211153890 $3.00
ONLY APPLIES TO BRAKE RIGHT SIDE
04 Lever 1 34211159811 $8.40
ONLY APPLIES TO BRAKE LEFT SIDE
04 Lever 1 34211159812 $8.40
05 Roll pin 5X14 2 07119941342 $0.21 ENDED
06 Linkage, left 1 34211154381 $19.29
06 Linkage, right 1 34211154382 $19.29
07 Tension spring 2 05/1991 34211153881 $3.37 ENDED
07 Repair kit springs 2 34219064272 $68.44 ENDED
08 Set mounting parts 2 34211154448 $8.63
09 Repair kit springs 1 34219064272 $68.44 ENDED
10 Repair kit brake shoe with springs 1 34219064270 $113.75
Notes
  • ENDED = the part has been discontinued (no longer available).
