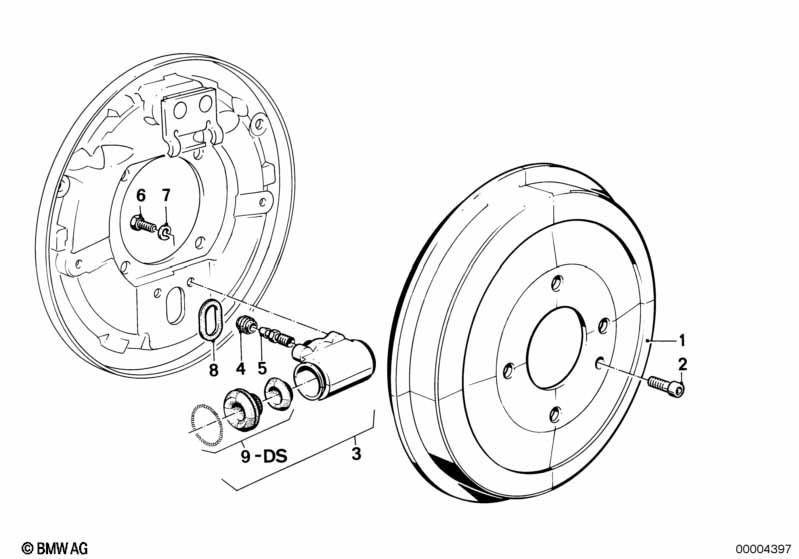

3' E30 318i Drum brake-brake drum/wheel brake cyl.

Drum brake-brake drum/wheel brake cyl.
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Brake drum D=228,5MM 2 34211158556 $98.79
02 Inner hex bolt M8X12 2 34111123072 $1.32
03 Wheel brake cylinder 20,64MM 2 09/1986 34211154236 $72.13
04 Dust cap 2 34111153198 $6.15
05 Bleeder valve 2 34111121206 $8.90
06 Hex Bolt M6X12 4 07119913442 $0.25 ENDED
06 Hex Bolt M6X12-8.8-ZNNIV 4 07119905524 $0.27
07 Spring washer B6 4 07119933082 $0.09
08 Gasket ring 2 34211154783 $5.34
09 Gasket set brake cylinder 2 09/1986 34211156636 $26.73 ENDED
09 Wheel brake cylinder 20,64MM 2 09/1986 34211154236 $72.13
Notes
  • ENDED = the part has been discontinued (no longer available).
