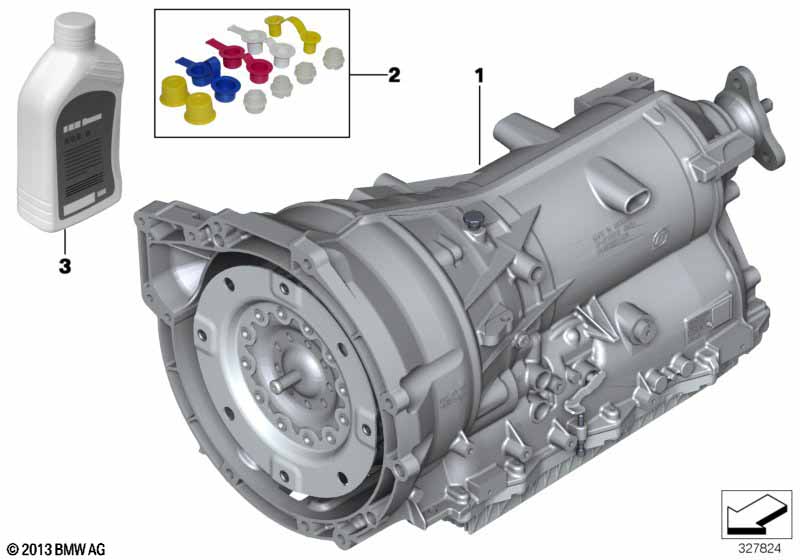

1' F20 116i Automatic transmission GA8HP45Z

Automatic transmission GA8HP45Z
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Automatic gearbox Eh GA8HP45Z - WQA 1 12/2011 24007636212 +core
01 Exch. automatic transmission EH GA8HP45Z 1 12/2011 24007623628 +core
01 Exch. automatic transmission EH GA8HP45Z 1 12/2011 24007640095 +core
01 Automatic gearbox Eh GA8HP45Z - WVJ 1 12/2011 07/2012 24007640094 ENDED, +core, NoS
01 Automatic gearbox Eh GA8HP45Z - X5S 1 07/2012 07/2013 24007642302 NoS
01 Exch. automatic transmission EH GA8HP45Z 1 12/2011 07/2013 24007643665 +core
01 Automatic gearbox Eh GA8HP45Z - XL4 1 07/2013 07/2015 24008614210 ENDED
01 Automatic gearbox Eh GA8HP45 - ZBZ 1 07/2015 07/2016 24008638289 ENDED
01 Automatic gearbox Eh GA8HP45 - ZTH 1 24008681113
01 Exch. automatic transmission EH GA8HP45Z 1 07/2013 24008616003
02 Set, blind plugs 1 24107604970
03 Automatic transmission fluid 3 1L X 02/2015 83222305397 ENDED
Filling quantity, see Additional
Information
03 ATF 3+ 1L X 83222289720
Filling quantity, see Additional
Information
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
  • NoS = No Stock (Part not centrally stocked.)
