5' E28 520i Volume air flow sensor

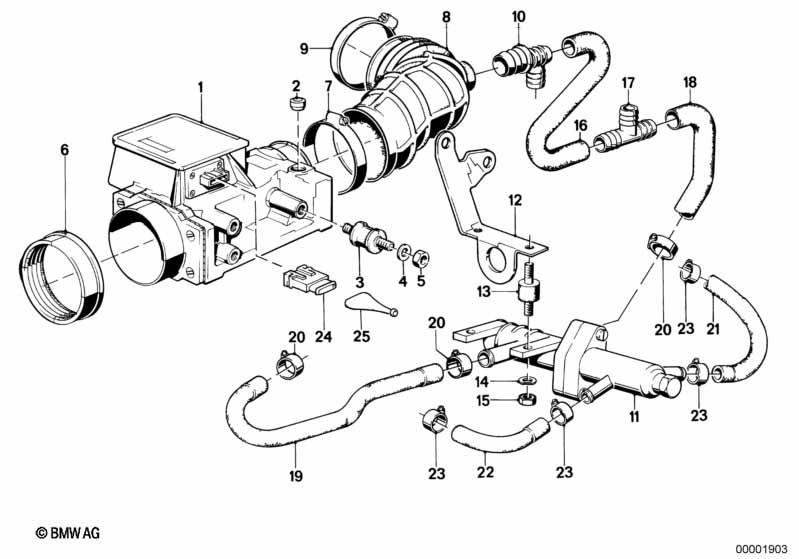

Volume air flow sensor
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Volume air flow sensor 1 09/1982 09/1985 13621284407 $763.59
02 Cap 1 09/1982 13621363874 $7.12 ENDED
03 Rubber mounting 3 09/1982 13711272495 $6.29
04 Washer 3 09/1982 11614000131 $1.80
05 Hex nut M8-ZNS 3 09/1982 07119922856 $0.56 ENDED
05 Hex nut M8-8-ZNS3 3 09/1982 12/1987 07119904032 $0.16
05 Hex nut M8-8-ZNNIV SI 3 09/1982 07119905515 $0.16
06 Rubber Ring 1 09/1982 13711272494 $2.23 ENDED
07 Hose clamp L71-78 1 09/1982 07129952129 $1.48
08 Rubber boot LMM 1 09/1982 13711285479 $26.14
09 Hose clamp L65-72 1 09/1982 07129952127 $1.89
10 T-Connector 1 09/1982 13511267745 $6.15
11 Additional air slide valve 1 09/1982 11531287303 $173.87 ENDED
12 Bracket 1 09/1982 11611284929 ENDED
13 Rubber mounting 2 09/1982 17111120224 $9.23
14 Wave washer B6 2 09/1982 07119932099 $0.38
14 Wave washer B6-ZNS3 2 09/1982 07119904496 $1.78 ENDED
16 Hose 1 09/1982 11611284661 $7.28
17 T-Connector 1 09/1982 11631277295 $0.95
18 Hose 1 09/1982 11611284662 $16.22
19 Hose 1 09/1982 11611284663 $18.20
20 Hose clamp L18-24 2 09/1982 07129952109 $1.07
21 Water hose 9,5MM X 09/1982 11531270148 $10.77
22 Water hose 1 09/1982 11531286338 $10.37
23 Hose clamp L15-18 4 09/1982 11151727509 $1.02
24 Plug housing 5 POL. 1 09/1982 06/1986 12521706069 $2.98 ENDED
24 Plug housing 1 09/1982 12521706097 $2.03
25 Protection cap L=27,0MM 1 09/1982 61131270973 $6.33
Notes
  • ENDED = the part has been discontinued (no longer available).
