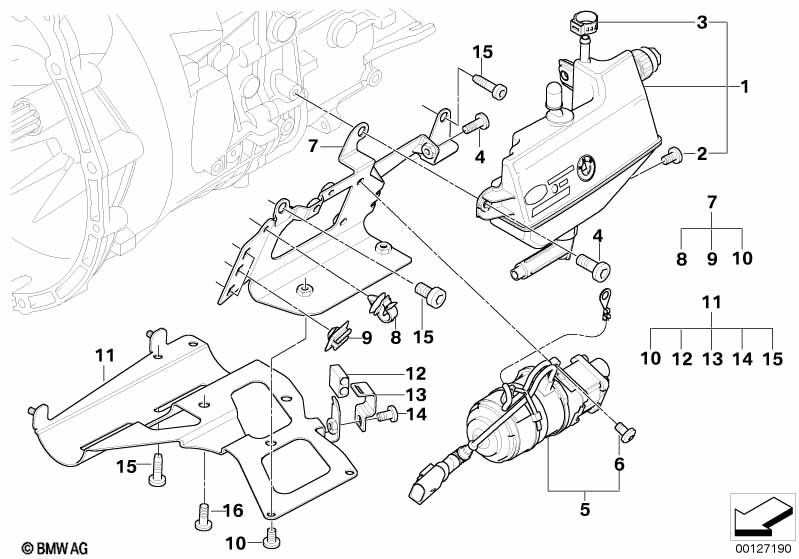

3' E46 330i GS5S31BZ(SMG) Expansion tank / Pump

GS5S31BZ(SMG) Expansion tank / Pump
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i For vehicles with
Sequential manual transmission (SMG)

S206A=Yes
01 Repair kit, expansion tank 1 03/2003 23427507065
02 Torx screw M6X12 1 03/2003 23427507059
03 Hose clamp 1 03/2003 23427507061
04 Torx screw M8X16 2 03/2003 23427507064
05 Hydraulic pump kit 1 03/2003 23427594334
06 Torx screw M6X12 3 03/2003 23427507059
07 Retaining plate kit, pump 1 03/2003 23427507070
only in conjunction with
-- Torx screw M8X16 1 03/2003 23427507064
-- Torx screw M8X16 2 03/2003 23427507071
08 Retaining clip 1 03/2003 61138368029 $0.43
09 Bracket, plug connection white 3 03/2003 61131378997 $0.87
10 Torx screw M6X12 2 03/2003 23427507059
11 Underride protection kit 1 03/2003 23427507074
only in conjunction with
-- Torx screw M8X16 3 03/2003 23427507071
12 Rubber mount 1 03/2003 23427507072
13 Pipe clip 1 03/2003 23427507073
14 Torx screw M6X12 1 03/2003 23427507059
15 Torx screw, self-tapping M6X20 2 03/2003 23427507050
16 Torx screw M8X16 5 03/2003 23427507071
