3' E46 330i GS5S31BZ(SMG) Hydraulic pipes

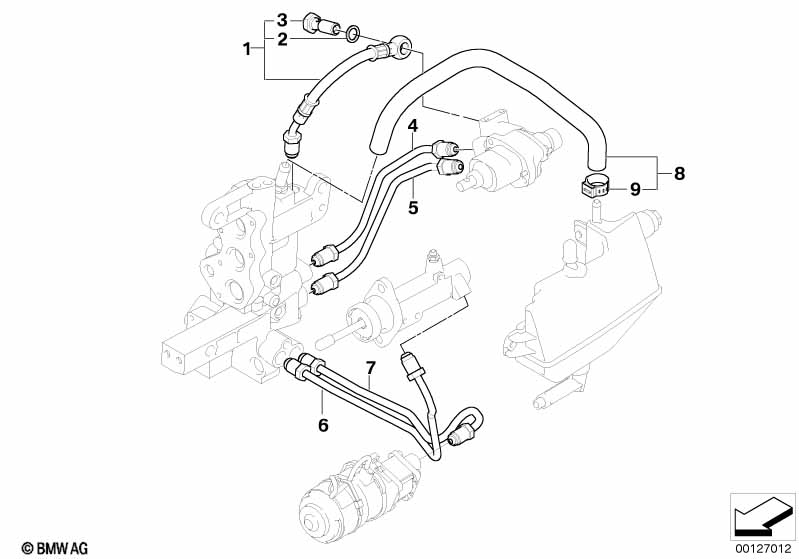

GS5S31BZ(SMG) Hydraulic pipes
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i For vehicles with
Sequential manual transmission (SMG)

S206A=Yes
01 Hydraulic pipe kit 1 03/2003 23427507028
02 Washer-gasket 2 03/2003 23427507010
03 Hydraulic screw 1 03/2003 23427507076
04 Hydraulic pipe 1 03/2003 23427507044
05 Hydraulic pipe 1 03/2003 23427507045
06 Hydraulic pipe 1 03/2003 23427507046
07 Hydraulic pipe 1 03/2003 23427507029
08 Return pipe set 1 03/2003 23427507047
09 Hose clamp 2 03/2003 23427507061
