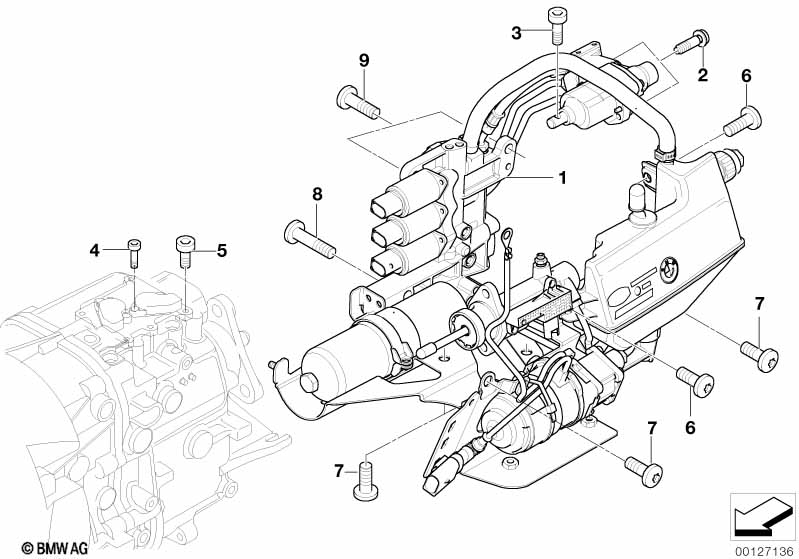

3' E46 330i GS5S31BZ(SMG) Hydraulic unit

GS5S31BZ(SMG) Hydraulic unit
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i For vehicles with
Sequential manual transmission (SMG)

S206A=Yes
01 Hydraulic unit 1 03/2003 23427507002 ENDED
Part is no longer available
Alternative: replacement 5-speed
sequential gearbox 7 507 037
02 Torx screw M6X20 2 03/2003 23427507051
03 Torx screw M6X16 1 03/2003 23427507052
04 Torx screw M4X12 4 03/2003 23017507119 $2.18
05 Torx screw M6X12 6 03/2003 23117531355 $1.80
06 Torx screw M8X16 2 03/2003 23427507064
07 Torx screw M8X16 5 03/2003 23427507071
08 Torx screw M8X35 1 03/2003 23427507057
09 Torx screw T30 2 03/2003 23427507058
Notes
  • ENDED = the part has been discontinued (no longer available).
