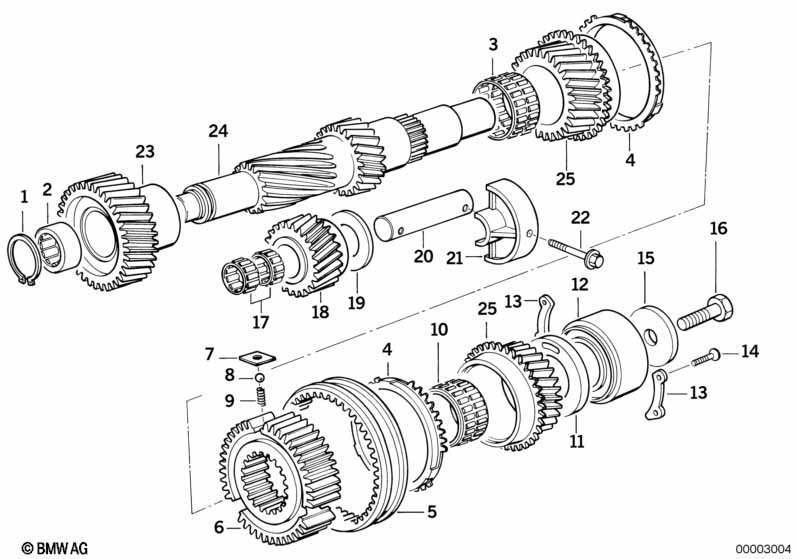

3' E46 330i GS5S31BZ(SMG) Counter shaft/reverse gear

GS5S31BZ(SMG) Counter shaft/reverse gear
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i For vehicles with
Sequential manual transmission (SMG)

S206A=Yes
01 Lock Ring 1 03/2003 23211224892 $3.48
02 Roller bearing 27X44X20,7 1 03/2003 23117500932 $35.87 +core
03 Needle cage 46X51X34 1 03/2003 23211224805 $8.18
04 Synchronizer ring 2 03/2003 23211224868 $121.90
05 Shift sleeve 3rd and 4th gear 1 03/2003 23311224965 $220.34
06 Guide sleeve 3rd and 4th gear 1 03/2003 23211282580 $96.53
07 Insert 3 03/2003 23211224846 $4.15
08 Ball 5MM III 3 03/2003 07119986250 $0.28
09 Compression spring 3 03/2003 23211224816 $1.10
10 Needle cage 38X51X34,05 1 03/2003 23211224809 $42.00
11 Stop disc 1 03/2003 23211224828 $23.44
12 Ball bearing 30X67X31 1 03/2003 23111224808 $106.03
13 Supporting plate 2 03/2003 23111224844 $4.15
14 Torx bolt M6X16 4 03/2003 23117566216 $1.39
15 Spacer 10,5X42X5 1 03/2003 23221224796 $5.58
16 Hex Bolt M10X1,25 1 03/2003 23211224810 $2.77
17 Needle cage 22X30X15 2 03/2003 23221224811 $8.62
18 Reverse gear 1 03/2003 23221282455 $78.68 +core
19 Spacer 22,05X42X2,5 1 03/2003 23221224826 $5.47
20 Pin 1 03/2003 23221224847 $30.41
21 Guide Shell 1 03/2003 23221224862 $11.38
22 Torx bolt M8X55 2 03/2003 23227543198 $2.17
23 Repair kit gear wheels 5th gear 1 03/2003 23211224893 $518.57
24 Repair kit gear wheels 1st A.2nd gear 1 03/2003 23217511955 $1366.73
25 Repair kit gear wheels 3rd A.4th gear 1 03/2003 23211224908 $1291.25
Notes
  • +core = plus core charge (possibility of a return of the old part)
