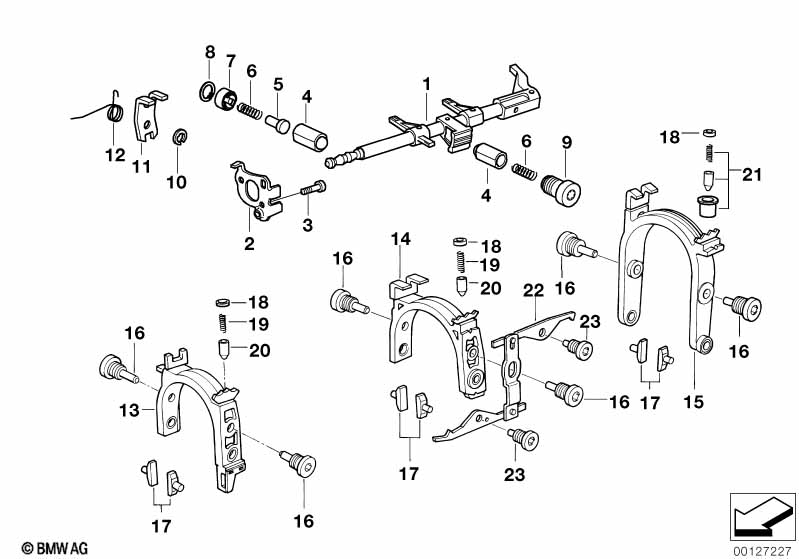

3' E46 330i GS5S31BZ(SMG) inner gear shifting parts

GS5S31BZ(SMG) inner gear shifting parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i For vehicles with
Sequential manual transmission (SMG)

S206A=Yes
01 Selector shaft 1 03/2003 23017507090 +core
02 Stop plate 1 03/2003 23017507088
03 Fillister head screw M6X20 2 03/2003 23311224922 $1.68
04 Locking pin 1 03/2003 23017507091
05 Clamping insert 1 03/2003 23017507092
06 Compression spring 1 03/2003 23311224819 $2.23
07 Cover lid 3 03/2003 23311224825 $5.42
08 Lock Ring 20X1 3 03/2003 23317531374 $1.43
09 Connector 1 03/2003 23017507093
10 Lock Ring 1 03/2003 23311224923 $0.57
11 Deflection lever 1 03/2003 23311224863 $11.46
12 Leg spring 1 03/2003 23311224833 $2.70
13 Shifting fork 5st and reverse gear 1 03/2003 23311282585 $72.70 +core
14 Shifting fork 1st and 2nd gear 1 03/2003 23311282582 $99.99 +core
15 Shifting fork 3rd and 4th gear 1 03/2003 23311282584 $106.86
16 Bearing bolt 6 03/2003 23317543214 $6.88
17 Sliding piece 6 03/2003 23311224848 $13.99
18 Cover lid 3 03/2003 23317637524
19 Compression spring 2 03/2003 23311224959 $1.65
20 Locking pin 2 03/2003 23311224791 $5.48
21 Set of detent pins 1 03/2003 23117525048 $11.79 SI 230102(881)
22 Locking lever 1 03/2003 23211224843 $13.01
23 Collar bolt 2 03/2003 23317543225 $7.61
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • SI = Service Information
