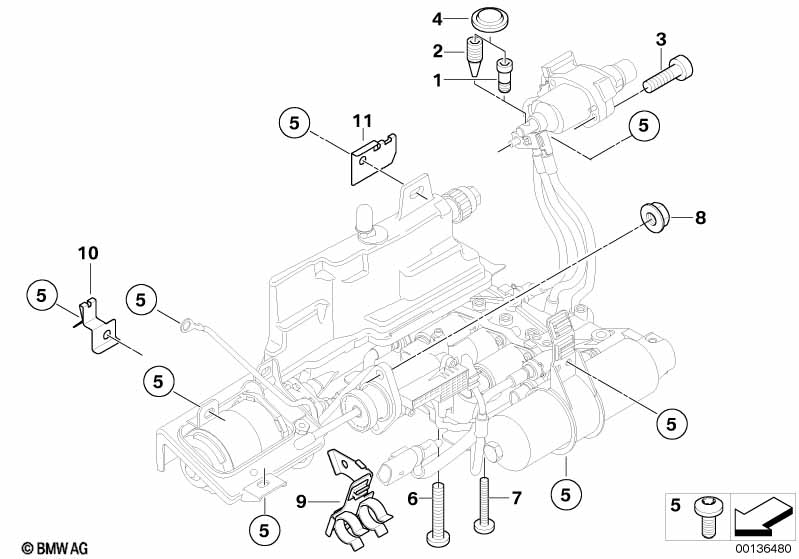

3' E46 330i GS6S37BZ(SMG) hydraulic mounting

GS6S37BZ(SMG) hydraulic mounting
No. Description Supp. Qty  From   Up To  Part Number Price Notes
Important! The gearbox code must be
determined prior to ordering.
The gearbox code is engraved
on the underside of the gearbox
bell housing.
Only applies to gearbox code
HOC / THOC / HOB / THOB / HOA / THOA
01 Fit bolt M6X16 1 03/2003 23017507118 $4.20
Important! The gearbox code must be
determined prior to ordering.
The gearbox code is engraved
on the underside of the gearbox
bell housing.
Only applies to gearbox code
HOF / THOF / HOE / THOE
02 Tapered screw M8X1 1 03/2003 23017568213 $7.17
03 Torx bolt M6X20-8.8-ZNNIV 2 03/2003 23017507117 $8.75
04 Cover lid 1 03/2003 23111224824 $7.88
05 Torx bolt M6X16 10 03/2003 23017507124 $1.75
06 Torx bolt M8X45 2 03/2003 23017507120 $2.77
07 Torx bolt M6X40 1 03/2003 23017507121 $2.62
08 Self-locking hex nut M8-8-ZNNI SI 2 03/2003 07129906196 $1.60
09 Plug-in connection bracket 1 03/2003 12527522652 $10.93
10 Retaining clip 1 03/2003 23017507085 $7.30
11 Retaining clip 1 03/2003 23017507084 $5.63
