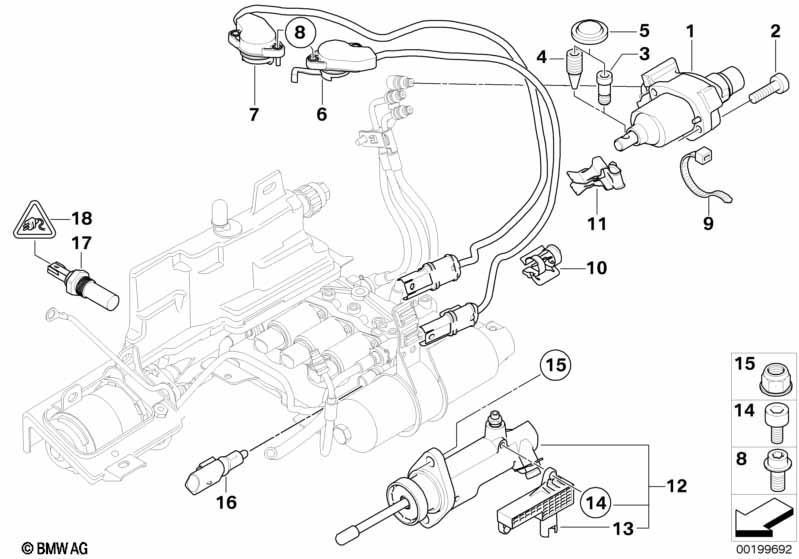

3' E46 330i GS6S37BZ(SMG) Actuator / Sensoren

GS6S37BZ(SMG) Actuator / Sensoren
No. Description Supp. Qty  From   Up To  Part Number Price Notes
Important! The gearbox code must be
determined prior to ordering.
The gearbox code is engraved
on the underside of the gearbox
bell housing.
Only applies to gearbox code
HOC / THOC / HOB / THOB / HOA / THOA
01 Repair kit, gearshift actuator 1 03/2003 23427571298 $1136.30
only in conjunction with
-- Cover lid 1 03/2003 23111224824 $7.88
-- Torx bolt M6X20-8.8-ZNNIV 2 03/2003 23017507117 $8.75
-- Fit bolt M6X16 1 03/2003 23017507118 $4.20
Important! The gearbox code must be
determined prior to ordering.
The gearbox code is engraved
on the underside of the gearbox
bell housing.
Only applies to gearbox code
HOF / THOF / HOE / THOE
01 Repair kit, gearshift actuator 1 03/2003 23427571299 $1136.30
only in conjunction with
-- Cover lid 1 03/2003 23111224824 $7.88
-- Torx bolt M6X20-8.8-ZNNIV 2 03/2003 23017507117 $8.75
-- Tapered screw M8X1 1 03/2003 23017568213 $7.17
02 Torx bolt M6X20-8.8-ZNNIV 2 03/2003 23017507117 $8.75
Important! The gearbox code must be
determined prior to ordering.
The gearbox code is engraved
on the underside of the gearbox
bell housing.
Only applies to gearbox code
HOC / THOC / HOB / THOB / HOA / THOA
03 Fit bolt M6X16 1 03/2003 23017507118 $4.20
Important! The gearbox code must be
determined prior to ordering.
The gearbox code is engraved
on the underside of the gearbox
bell housing.
Only applies to gearbox code
HOF / THOF / HOE / THOE
04 Tapered screw M8X1 1 03/2003 23017568213 $7.17
05 Cover lid 1 03/2003 23111224824 $7.88
06 Shift sensor 1 03/2003 23427507169 $131.00
only in conjunction with
-- Torx screw M4X12 2 03/2003 23017507119 $2.18
-- Cable tie 1 03/2003 23017569993 $1.75
-- Clip 1 03/2003 12521437136 $0.63
-- Cable clip 1 03/2003 11787516866 $8.60
07 Selection sensor 1 03/2003 23427507168 $131.00
only in conjunction with
-- Torx screw M4X12 2 03/2003 23017507119 $2.18
-- Cable tie 1 03/2003 23017569993 $1.75
-- Clip 1 03/2003 12521437136 $0.63
-- Cable clip 1 03/2003 11787516866 $8.60
08 Torx screw M4X12 4 03/2003 23017507119 $2.18
09 Cable tie 1 03/2003 23017569993 $1.75
10 Clip 1 03/2003 12521437136 $0.63
11 Cable clip 1 03/2003 11787516866 $8.60
12 Clutch actuator with sensor 1 03/2003 23427507097 $1050.59
only in conjunction with
-- Self-locking hex nut M8-8-ZNNI SI 1 03/2003 07129906196 $1.60
13 Clutch position sensor kit 1 03/2003 23427571300 $307.32
14 Inner hex bolt M4X12 1 03/2003 21547507053
15 Self-locking hex nut M8-8-ZNNI SI 2 03/2003 07129906196 $1.60
16 Pressure sensor 1 03/2003 23017568177 $119.87
17 Rotational-speed sensor 1 03/2003 23017507013 $146.11
18 Socket housing 1 03/2003 12527507529 $2.53
only in conjunction with
-- Bushing contact MLK 1.2 ELA 0,35-0,5MM² AG 2 03/2003 61138722290
-- Strand seal 1 03/2003 12527503411 $0.18
