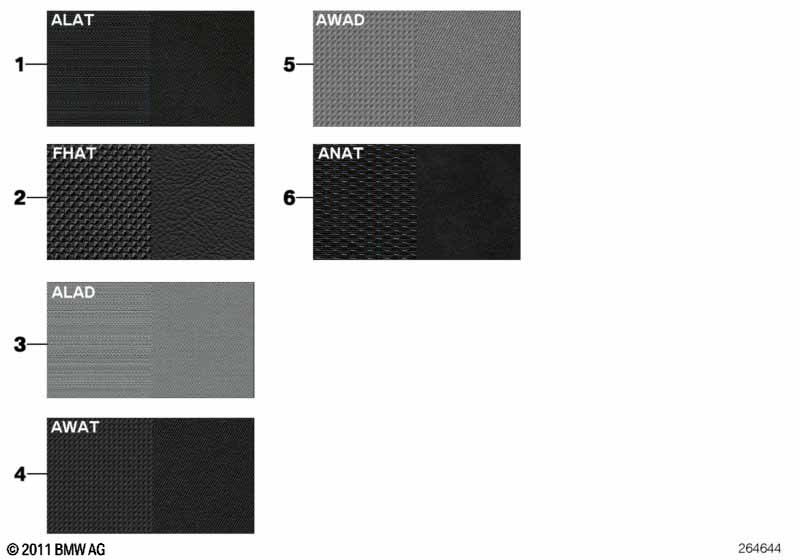

Sample page, upholstery colors, fabric for BMW 3 Series E92 LCI 325i (2013)
This Sample page, upholstery colors, fabric technical drawing provides a detailed breakdown of the assembly for the 3 Series E92 LCI 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Fabric/leather 'Pearlpoint/anthracite' |
FHAT=Yes |
|||||||||
| 02 | Color names for this model: | X | 09/2013 | 51138888888 | Shop at ECS Tuning | |||||
| = Anthrazit/Schwarz | ||||||||||
| For vehicles with Fabric "Diagonal/anthracite" |
AWAT=Yes |
|||||||||
| 04 | Color names for this model: | X | 09/2010 | 09/2013 | 51138888888 | Shop at ECS Tuning | ||||
| = Anthrazit | ||||||||||
| For vehicles with Cloth "blue shadow/Alcantara"/anthracite |
ANAT=Yes |
|||||||||
| 06 | Color names for this model: | X | 09/2010 | 09/2013 | 51138888888 | Shop at ECS Tuning | ||||
| = Anthrazit | ||||||||||
