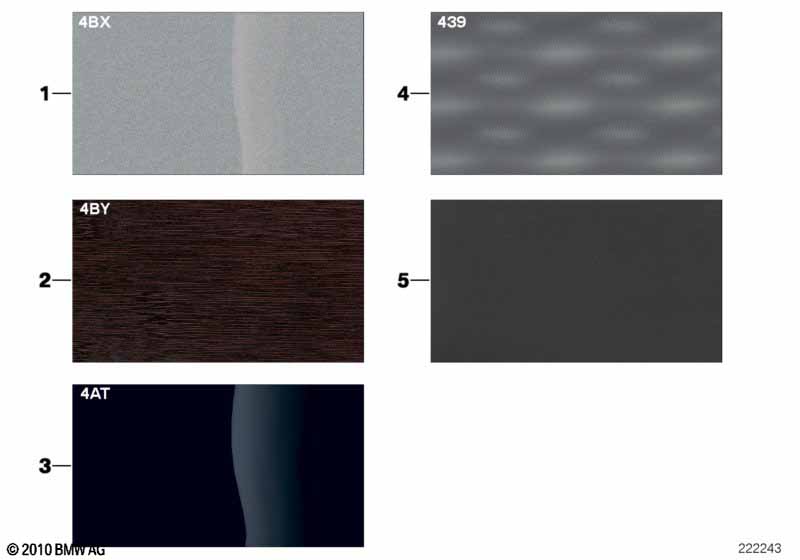

Sample chart with interior moldings for BMW 5 Series E61 LCI 520d (2007)
This Sample chart with interior moldings technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 LCI 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Interior strips, high-gloss, grey |
S4BXA=Yes |
|||||||||
| 01 | Color names for this model: | X | 09/2006 | 09/2009 | 51138888888 | Shop at ECS Tuning | ||||
| = Grau hochglänzend | ||||||||||
| For vehicles with Real Bamboo wood-grain trim, anthracite |
S4BYA=Yes |
|||||||||
| 02 | Color names for this model: | X | 09/2006 | 09/2009 | 51138888888 | Shop at ECS Tuning | ||||
| = Bambus Maser anthrazit | ||||||||||
| For vehicles with Interior trim finishers black high-gloss |
S4ATA=Yes |
|||||||||
| 03 | Color names for this model: | X | 09/2006 | 09/2009 | 51138888888 | Shop at ECS Tuning | ||||
| = Schwarz hochglänzend | ||||||||||
