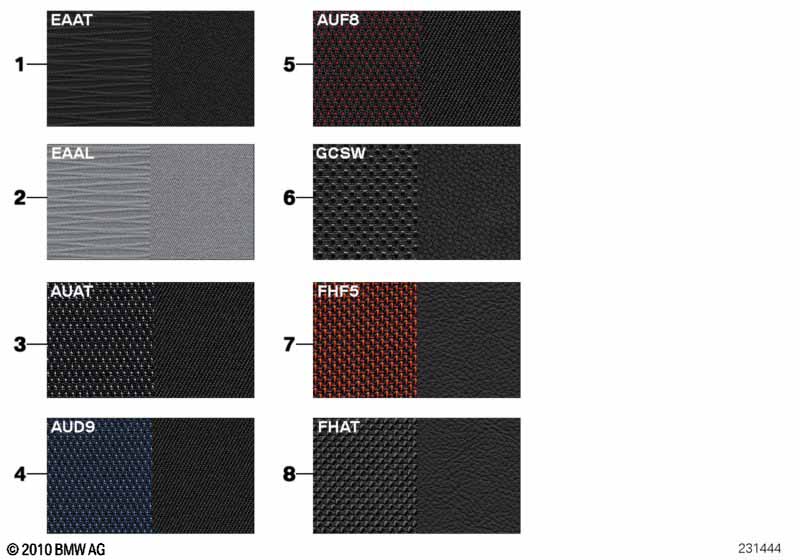

Samples, upholstery colors, leather/fabr for BMW 1 Series E87 LCI 118d (2011)
This Samples, upholstery colors, leather/fabr technical drawing provides a detailed breakdown of the assembly for the 1 Series E87 LCI 118d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Cloth "Elektra"/anthracite |
EAAT=Yes |
|||||||||
| 01 | Color names for this model: | X | 09/2007 | 09/2011 | 51138888888 | Shop at ECS Tuning | ||||
| = Anthrazit | ||||||||||
| For vehicles with Cloth "Elektra"/alaska-grey |
EAAL=Yes |
|||||||||
| 02 | Color names for this model: | X | 09/2007 | 09/2011 | 51138888888 | Shop at ECS Tuning | ||||
| = Alaskagrau | ||||||||||
| For vehicles with Fabric "Network"/anthracite |
AUAT=Yes |
|||||||||
| 03 | Color names for this model: | X | 09/2004 | 09/2011 | 51138888888 | Shop at ECS Tuning | ||||
| = Anthrazit | ||||||||||
| For vehicles with Fabric "Network"/Monaco blue |
AUD9=Yes |
|||||||||
| 04 | Color names for this model: | X | 09/2004 | 09/2011 | 51138888888 | Shop at ECS Tuning | ||||
| = Monacoblau | ||||||||||
| For vehicles with Fabric "Network"/cranberry-red |
AUF8=Yes |
|||||||||
| 05 | Color names for this model: | X | 09/2007 | 09/2011 | 51138888888 | Shop at ECS Tuning | ||||
| = Cranberryrot | ||||||||||
| For vehicles with Fabric/Sensatec 'Flashpoint/black' |
GCSW=Yes |
|||||||||
| 06 | Color names for this model: | X | 09/2009 | 09/2011 | 51138888888 | Shop at ECS Tuning | ||||
| = Black | ||||||||||
| For vehicles with Fabric/leather 'Pearlpoint/orange' |
FHF5=Yes |
|||||||||
| 07 | Color names for this model: | X | 09/2007 | 09/2011 | 51138888888 | Shop at ECS Tuning | ||||
| = Orange | ||||||||||
| For vehicles with Fabric/leather 'Pearlpoint/anthracite' |
FHAT=Yes |
|||||||||
| 08 | Color names for this model: | X | 09/2007 | 09/2011 | 51138888888 | Shop at ECS Tuning | ||||
| = Anthrazit | ||||||||||
