Engine oil / maintenance service for BMW 3 Series E90 330d (2008)
This Engine oil / maintenance service technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|

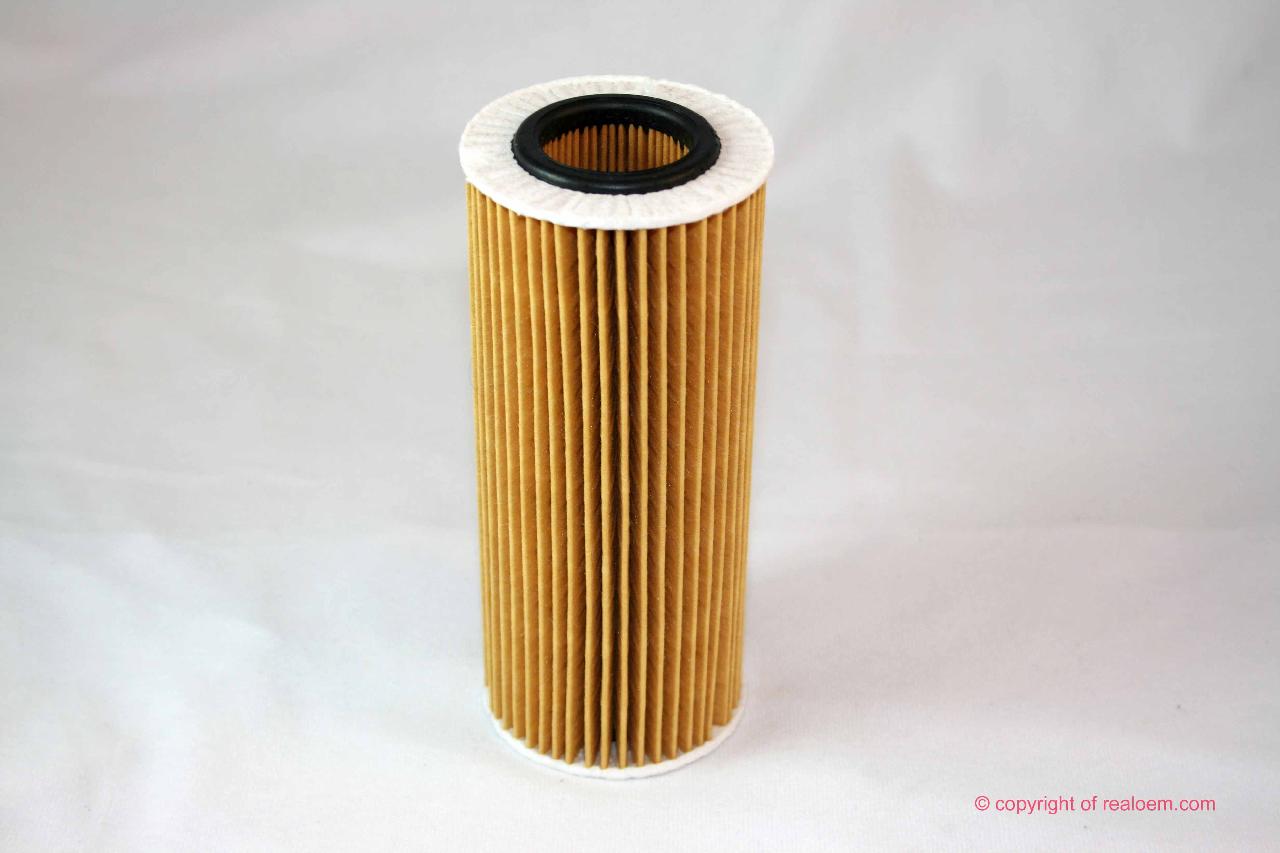

| 01 | Set oil-filter element | 1 | 11427788460 | $21.65 | Shop at ECS Tuning | |||||

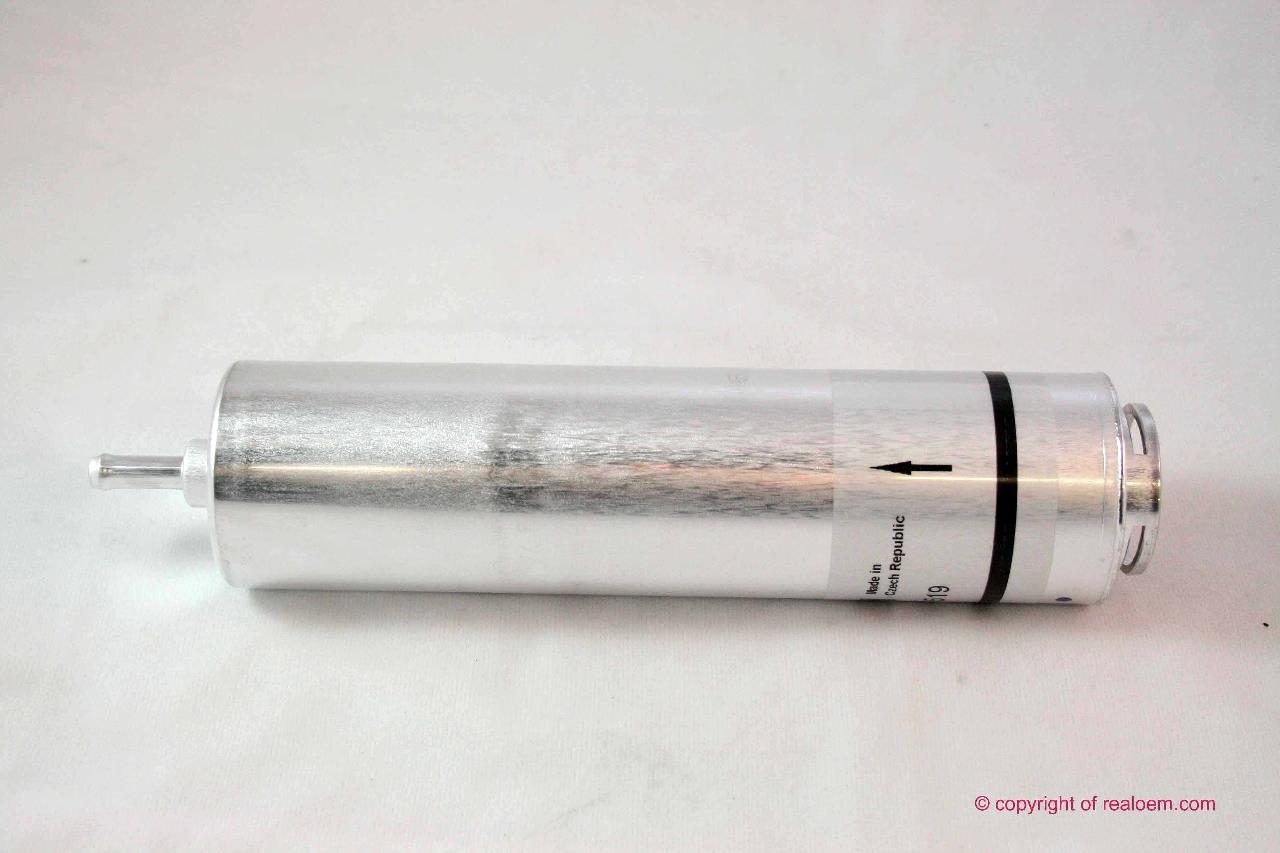

| 02 | Fuel filter cartridge | 1 | 02/2010 | 13327793672 | $48.98 | Shop at ECS Tuning | ||||
| 03 | Air filter element | 1 | 13712247444 | $55.40 | Shop at ECS Tuning | |||||
| For vehicles with National version China |
L8AAA=No |
|||||||||
| 04 | Fine-dust filter | 1 | 64316803970 | Shop at ECS Tuning | ||||||
| 04 | Microfilter/activated Carbon container | 1 | 64319313519 | Shop at ECS Tuning | ||||||
| For vehicles with National version China and Automatic air conditioning |
L8AAA=Yes S534A=Yes |
|||||||||
| 04 | Microfilter | 1 | 64319313517 | ENDED | Shop at ECS Tuning | |||||
| 04 | Microfilter/activated Carbon container | 1 | 64319313519 | Shop at ECS Tuning | ||||||
| For vehicles with National version China and Automatic air conditioning |
L8AAA=Yes S534A=No |
|||||||||
| 04 | Microfilter | 1 | 64319313517 | ENDED | Shop at ECS Tuning | |||||
| 04 | Microfilter/activated Carbon container | 1 | 64319313519 | Shop at ECS Tuning | ||||||
| For vehicles with National version China and Automatic air conditioning |
L8AAA=No S534A=Yes |
|||||||||
| 04 | Microfilter | 1 | 64319313517 | ENDED | Shop at ECS Tuning | |||||
| 04 | Microfilter/activated Carbon container | 1 | 64319313519 | Shop at ECS Tuning | ||||||
| 05 | Inspection kit I Value Line | VALUE PARTS | 1 | 88002288317 | Shop at ECS Tuning | |||||
| 06 | Set of wiper blades | 1 | 09/2009 | 61610427668 | $53.26 | ENDED | Shop at ECS Tuning | |||
| 06 | Set of wiper blades | 1 | 09/2009 | 61612455439 | ENDED | Shop at ECS Tuning | ||||
| 06 | Set of wiper blades | 1 | 09/2009 | 61612468941 | Shop at ECS Tuning | |||||
| 08 | Brake fluid DOT4, low viscosity | 1000ML | X | 10/2013 | 83132405979 | ENDED | Shop at ECS Tuning | |||
| Filling quantity, see Additional Information |
||||||||||
| 08 | Brake fluid DOT4, low-viscosity JP | 1000ML | X | 83135A824F7 | Shop at ECS Tuning | |||||
| Filling quantity, see Additional Information |
||||||||||
| 08 | Brake fluid DOT4 LV, low viscosity | 1000ML, TU | X | 83132184843 | NoS | Shop at ECS Tuning | ||||
| Filling quantity, see Additional Information |
||||||||||
| 09 | Anti-freeze | 1,5L | X | 09/2013 | 83192211191 | ENDED | Shop at ECS Tuning | |||
| Filling quantity, see Additional Information |
||||||||||
| 09 | Anti-freeze | 1,5L | X | 10/2013 | 83512355290 | Shop at ECS Tuning | ||||
| Filling quantity, see Additional Information |
||||||||||
| 09 | Radiator antifreeze | 1,5 LITER | X | 83515A6CDD7 | Shop at ECS Tuning | |||||
| Filling quantity, see Additional Information |
||||||||||
| 09 | Anti-freeze | 1000ML, TU | X | 83192218347 | Shop at ECS Tuning | |||||
| Filling quantity, see Additional Information |
||||||||||
| For vehicles with Country control for Scandanavia 09090 |
S8LZA=Yes |
|||||||||
| 09 | Anti-freeze | 1,5L | X | 10/2013 | 83192211914 | ENDED | Shop at ECS Tuning | |||
| Filling quantity, see Additional Information |
||||||||||
| 09 | Radiator antifreeze | 1,5 LITER | X | 83515A6CDD7 | Shop at ECS Tuning | |||||
| Filling quantity, see Additional Information |
||||||||||
| 10 | Window cleaner w/o frost protection 1:10 | 1000ML | X | 10/2013 | 83122452028 | ENDED | Shop at ECS Tuning | |||
| Filling quantity, see Additional Information |
||||||||||
| 10 | Window cleaner w/o frost protection 1:10 | 1000ML | X | 10/2013 | 83125A19654 | ENDED | Shop at ECS Tuning | |||
| Filling quantity, see Additional Information |
||||||||||
| 10 | Window cleaner w/o frost protection 1:10 | 1000ML | X | 10/2013 | 83125A1A170 | ENDED | Shop at ECS Tuning | |||
| Filling quantity, see Additional Information |
||||||||||
| 10 | Glass cleaner without antifreeze | 1000ML | X | 10/2013 | 83124B05261 | Shop at ECS Tuning | ||||
| Filling quantity, see Additional Information |
||||||||||
| 10 | Glass cleaner without antifreeze | 1000ML | X | 83125B5EDC9 | Shop at ECS Tuning | |||||
| Filling quantity, see Additional Information |
||||||||||
| 10 | Washer fluid, concentrated | 50ML | X | 11/2019 | 83122298203 | ENDED | Shop at ECS Tuning | |||
| Filling quantity, see Additional Information |
||||||||||
| 10 | Washer fluid, concentrated | 50ML | X | 10/2013 | 83125A1A683 | ENDED | Shop at ECS Tuning | |||
| Filling quantity, see Additional Information |
||||||||||
| 10 | Cleaning fluid, concentrate without FS | 50ML | X | 10/2013 | 83125A855B8 | ENDED | Shop at ECS Tuning | |||
| Filling quantity, see Additional Information |
||||||||||
| 10 | BMW concentrated glass cleaner w/o a.f. | 50ML | X | 83125B5FDD6 | Shop at ECS Tuning | |||||
| Filling quantity, see Additional Information |
||||||||||
| 11 | Hydraulic fluid CHF 11 S | 1000ML | X | 83290429576 | $22.27 | Shop at ECS Tuning | ||||
| Filling quantity, see Additional Information |
||||||||||
| 11 | BMW automatic transmission fluid D 2 | 1L | X | 81229400272 | Shop at ECS Tuning | |||||
| Filling quantity, see Additional Information |
||||||||||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
