Engine oil / maintenance service for BMW 3 Series G21 Touring LCI M340dX (2024)
This Engine oil / maintenance service technical drawing provides a detailed breakdown of the assembly for the 3 Series G21 Touring LCI M340dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.

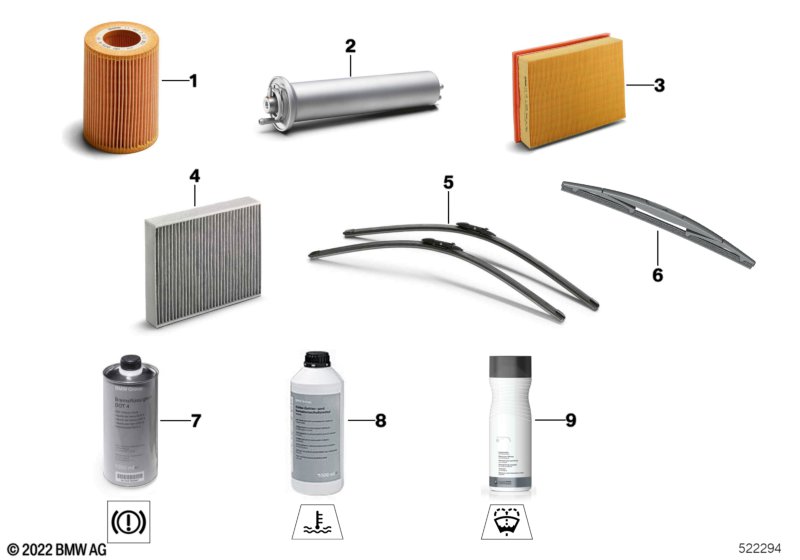

| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Set oil-filter element | 1 | 11427826799 | Shop at ECS Tuning | ||||||
| 02 | Fuel filter heated | 1 | 13329886040 | Shop at ECS Tuning | ||||||
| 03 | Air filter element | 1 | 13718594535 | Shop at ECS Tuning | ||||||
| For vehicles with National version China Attention! Recirculated air flap can get damaged during replacement. Please observe the repair instructions! |
L8AAA=No |
|||||||||
| 04 | Microfilter/activated Carbon container | 1 | 64119382886 | Shop at ECS Tuning | ||||||
| 05 | Set of wiper blades | RL | 1 | 61619478362 | Shop at ECS Tuning | |||||
| 06 | Wiper blade | 1 | 61627468054 | Shop at ECS Tuning | ||||||
| 07 | Brake fluid DOT4, low-viscosity JP | 1000ML | X | 83135A824F7 | Shop at ECS Tuning | |||||
| Filling quantity, see Additional Information |
||||||||||
| 07 | Brake fluid DOT4 LV, low viscosity | 1000ML, TU | X | 83132184843 | NoS | Shop at ECS Tuning | ||||
| Filling quantity, see Additional Information |
||||||||||
| Attention! For approved coolant, see operating fluids list in AIR |
||||||||||
| 08 | Radiator antifreeze | 1,5 LITER | X | 83515A6CDD7 | Shop at ECS Tuning | |||||
| Filling quantity, see Additional Information |
||||||||||
| 08 | Anti-freeze | 1000ML, TU | X | 83192218347 | Shop at ECS Tuning | |||||
| Filling quantity, see Additional Information |
||||||||||
| 08 | Antifr./anti-corros.agent Frostox HT-12 | 1,5 LITER | X | 83195A42DF3 | Shop at ECS Tuning | |||||
| Filling quantity, see Additional Information |
||||||||||
| For vehicles with Country control for Scandanavia 09090 Attention! For approved coolant, see operating fluids list in AIR |
S8LZA=Yes |
|||||||||
| 08 | Radiator antifreeze | 1,5 LITER | X | 83515A6CDD7 | Shop at ECS Tuning | |||||
| Filling quantity, see Additional Information |
||||||||||
| 09 | Cleaning fluid, concentrate without FS | 50ML | X | 09/2024 | 83125A855B8 | ENDED | Shop at ECS Tuning | |||
| Filling quantity, see Additional Information |
||||||||||
| 09 | BMW concentrated glass cleaner w/o a.f. | 50ML | X | 83125B5FDD6 | Shop at ECS Tuning | |||||
| Filling quantity, see Additional Information |
||||||||||
| 09 | Glass cleaner without antifreeze | 1000ML | X | 10/2024 | 83124B05261 | Shop at ECS Tuning | ||||
| Filling quantity, see Additional Information |
||||||||||
| 09 | Glass cleaner without antifreeze | 1000ML | X | 83125B5EDC9 | Shop at ECS Tuning | |||||
| Filling quantity, see Additional Information |
||||||||||
Notes
- NoS = No Stock (Part centrally not stocked)
- ENDED = the part has been discontinued (no longer available).
