BMW M Performance muffler - system for BMW 1 Series F20 M135i (2015)

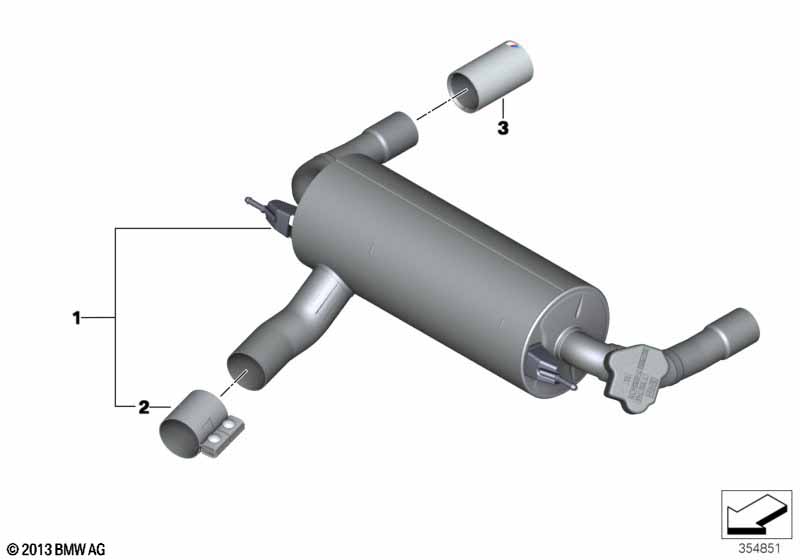

This BMW M Performance muffler - system technical drawing provides a detailed breakdown of the assembly for the 1 Series F20 M135i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Tailpipe tip, chrome | M PERFORMANCE | 1 | 18302286251 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| 03 | Tailpipe end cover in Carbon | M PERFORMANCE | 1 | 18302286255 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| 03 | Set tailpipe trim carbon | M PERFORMANCE | 1 | 18305B7A4B5 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | M Performance muffler | M PERFORMANCE | X | 18302349989 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
