Retrofit kit, Performance suspension for BMW 3 Series E46 330Ci

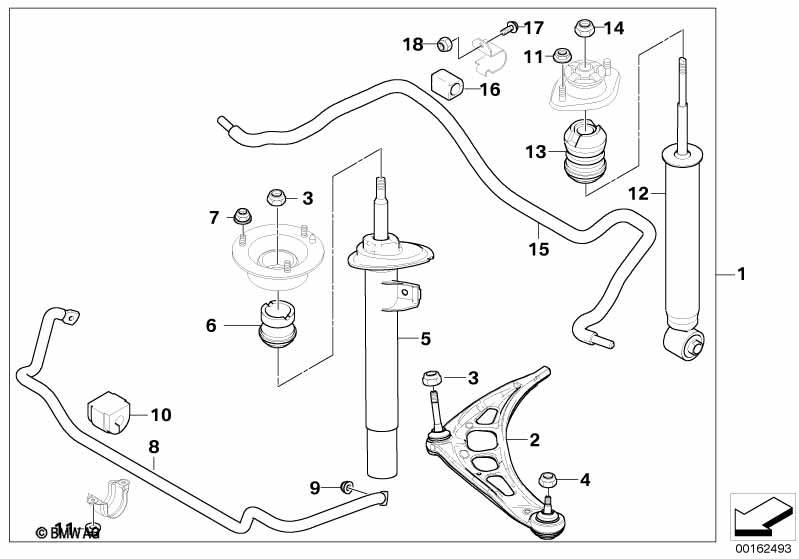

This Retrofit kit, Performance suspension technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330Ci. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Retrofit kit sports suspension | BMW PERFORMANCE | 1 | 09/2001 | 33500429752 | $1070.00 | ENDED | Shop at ECS Tuning | ||
| additionally required parts: For coil springs, see spring table Analog suspension tuning S226A |
||||||||||
| 02 | Repair kit, wishbone, left | VALUE PARTS | 1 | 09/2001 | 31122341297 | Shop at ECS Tuning | ||||
| 02 | Repair kit, wishbone, right | VALUE PARTS | 1 | 09/2001 | 31122341828 | Shop at ECS Tuning | ||||
| 03 | Self-locking hex nut | M12X1.5-05 ZNS3 | 2 | 09/2001 | 32216769539 | $0.83 | Shop at ECS Tuning | |||
| 04 | Self-locking hex nut | M14X1,5-05 ZNS3 | 4 | 09/2001 | 31106774714 | $1.12 | Shop at ECS Tuning | |||
| 05 | Left front spring strut | 1 | 09/2001 | 31312282101 | $309.71 | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| 05 | Front right spring strut | 1 | 09/2001 | 31312282102 | $309.71 | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Self-locking hex nut | M14X1,5-05 ZNS3 | 1 | 09/2001 | 31106774714 | $1.12 | Shop at ECS Tuning | |||
| -- | Hex bolt with washer | M12X1,5X55-10.9 | 1 | 09/2001 | 31306779487 | $2.17 | Shop at ECS Tuning | |||
| 06 | Additional shock absorber, front | 2 | 09/2001 | 31336778544 | $17.18 | Shop at ECS Tuning | ||||
| 07 | Self-locking collar nut | M8-8 ZNS3 | 6 | 09/2001 | 31316769731 | $0.38 | Shop at ECS Tuning | |||
| 08 | Stabilizer, front | D=24MM | 1 | 09/2001 | 31351094542 | $159.52 | Shop at ECS Tuning | |||
| 09 | Hex nut wiht flange | M10-10 ZNS3 | 2 | 09/2001 | 33306760587 | $0.78 | Shop at ECS Tuning | |||
| 10 | Stabilizer rubber mounting | D=24MM | 2 | 09/2001 | 31351094556 | $19.25 | Shop at ECS Tuning | |||
| Required for repair | ||||||||||
| -- | Installation tool | 250ML | 2 | 09/2001 | 83192405829 | Shop at ECS Tuning | ||||
| 11 | Self-locking collar nut | M8-8-ZNS3 | 8 | 09/2001 | 07119904295 | $0.36 | Shop at ECS Tuning | |||
| 11 | Self-locking collar nut | M8-10 ZNS3 | 8 | 09/2001 | 07119905374 | Shop at ECS Tuning | ||||
| 12 | Shock absorber, rear | 2 | 09/2001 | 33522282100 | $170.91 | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Self-locking hex nut | M10X1-8 ZNS3 | 2 | 09/2001 | 33526773882 | $1.03 | Shop at ECS Tuning | |||
| -- | Hex bolt | M12X1,5X60 | 2 | 09/2001 | 07119900402 | $1.64 | Shop at ECS Tuning | |||
| 13 | Auxiliary shock absorber, rear | 2 | 09/2001 | 08/2006 | 33531138109 | $20.55 | Shop at ECS Tuning | |||
| 13 | Repair kit, additional damper guard tube | VALUE PARTS | 2 | 09/2001 | 33502290348 | Shop at ECS Tuning | ||||
| 14 | Self-locking hex nut | M10X1-8 ZNS3 | 2 | 09/2001 | 33526773882 | $1.03 | Shop at ECS Tuning | |||
| 15 | Stabilizer, rear | D=20MM | 1 | 09/2001 | 33556751267 | $148.28 | Shop at ECS Tuning | |||
| 16 | Stabilizer rubber mounting | D=20MM | 2 | 09/2001 | 33551096669 | $5.93 | Shop at ECS Tuning | |||
| Required for repair | ||||||||||
| -- | Installation tool | 250ML | 2 | 09/2001 | 83192405829 | Shop at ECS Tuning | ||||
| 17 | Hex bolt | M8X16-8.8-ZNS3 | 2 | 09/2001 | 07119902900 | $0.36 | Shop at ECS Tuning | |||
| 18 | Self-locking hex nut | M8-8-ZNS3 | 2 | 09/2001 | 07129904002 | $0.18 | Shop at ECS Tuning | |||
