Performance suspension for BMW 1 Series E81 118d (2011)

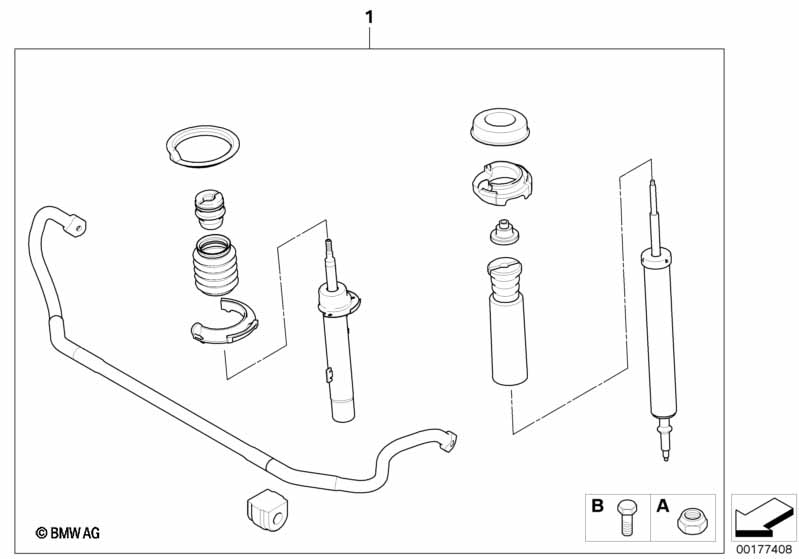

This Performance suspension technical drawing provides a detailed breakdown of the assembly for the 1 Series E81 118d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Sports suspension settings or M Sports suspension |
S226A=Yes S704A=Yes |
||||||||
| Only with springs, see springs table Code SZP5A Performance Suspension selection |
||||||||||
| 01 | Retrofit kit sports suspension | BMW PERFORMANCE | 1 | 33500444831 | $1167.00 | ENDED | Shop at ECS Tuning | |||
| 01 | Retrofit kit sports suspension | BMW PERFORMANCE | 1 | 33500444831 | $1167.00 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Torx-bolt with washer | M12X127-10.9 | 2 | 33326760340 | $3.60 | Shop at ECS Tuning | ||||
| -- | Torx screw | M8X18-10.9 ZNS3 | 4 | 33326764505 | $0.80 | Shop at ECS Tuning | ||||
| -- | Hex screw with collar | M10X33-10.9 | 4 | 33326768354 | $1.14 | Shop at ECS Tuning | ||||
| -- | Push rod left | 1 | 33326784315 | $33.91 | +core | Shop at ECS Tuning | ||||
| -- | Push rod right | 1 | 33326784316 | $33.91 | +core | Shop at ECS Tuning | ||||
| -- | Tension strut | 1 | 33306778243 | $67.83 | Shop at ECS Tuning | |||||
| -- | Hexagon screw with flange | M12X1,5X35-10.9 | 2 | 07147203503 | $1.75 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
