Performance suspension for BMW 3 Series E90 LCI 330i (2011)

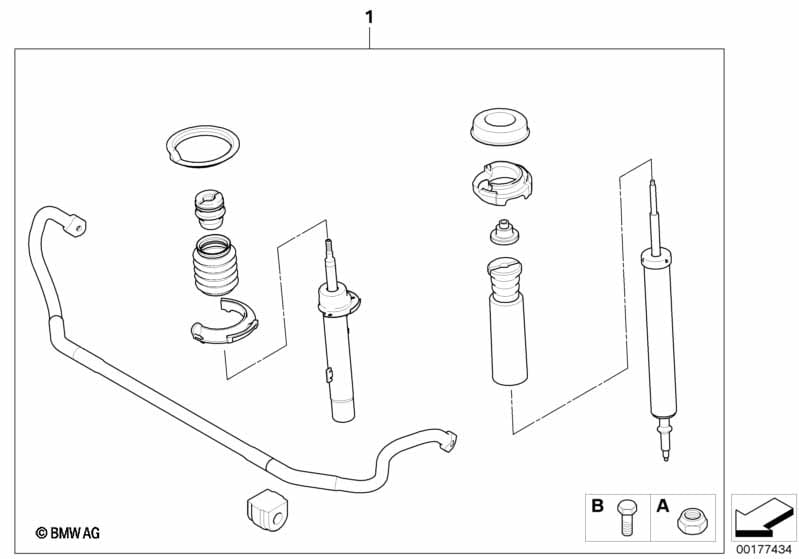

This Performance suspension technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 330i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with National version China |
L8AAA=No |
||||||||
| Only with springs, see springs table Code SZP5A Performance Suspension selection |
||||||||||
| 01 | Retrofit kit sports suspension | BMW PERFORMANCE | 1 | 33500444832 | $1167.00 | ENDED | Shop at ECS Tuning | |||
| For vehicles with M Sports suspension |
S704A=Yes |
|||||||||
| 01 | Retrofit kit sports suspension | BMW PERFORMANCE | 1 | 33500444832 | $1167.00 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Stabilizer rubber mounting | D=13MM | 2 | 33556761002 | $15.18 | Shop at ECS Tuning | ||||
| -- | Stabilizer, rear | D=13MM | 1 | 33556764425 | $119.80 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E90 LCI 330i Performance suspension?
- This technical diagram illustrates the Performance suspension within the Retrofitting / conversion / accessories group for the 3 Series E90 LCI 330i produced during 2011. It provides a detailed exploded view of the components, identifying key parts such as the Retrofit kit sports suspension (Part #33500444832).
- Which models use the hardware listed in this Performance suspension?
- The hardware and components featured in the Performance suspension are specific to the 3 Series E90 LCI 330i produced during 2011. These technical specifications ensure that parts like the Retrofit kit sports suspension (33500444832) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Performance suspension assembly?
- Each item in the Performance suspension corresponds to the numbered list below the illustration. For the 3 Series E90 LCI 330i, you can identify the Retrofit kit sports suspension by locating its position on the schematic, which then links to the official BMW part number 33500444832 for the Retrofitting / conversion / accessories section.
