Brake pad, Sport pad for BMW 4 Series F82 M4 M4 (2017)

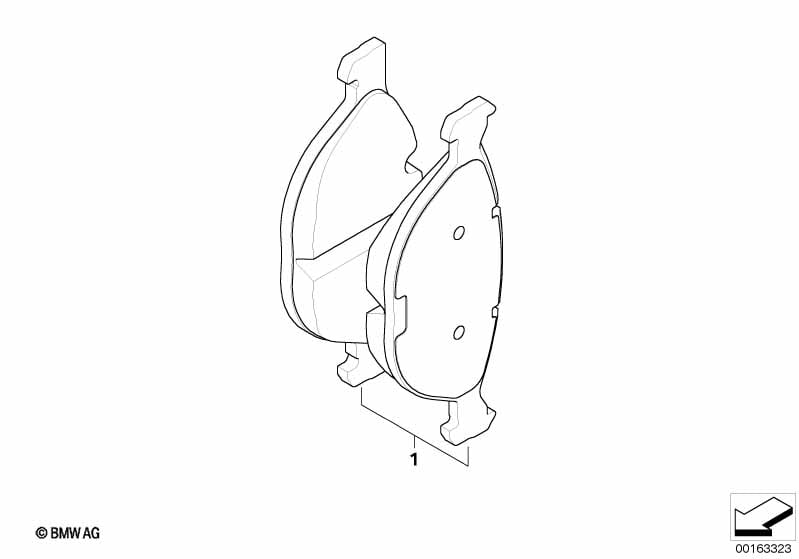

This Brake pad, Sport pad technical drawing provides a detailed breakdown of the assembly for the 4 Series F82 M4 M4. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2017.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Sport brake pad - derived from motorsport applications - with increased performance over standard and competition brake pads. Regarding application noise - refer to product information. |
|||||||||
| For vehicles with M Sport brakes and M Carbon ceramic brake |
S2NHA=No S2NKA=No |
|||||||||
| 01 | Retrofit kit sport brake pads front | S4007 | 1 | 34112284765 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Brake disc, ventilated, left | 380X30 | 1 | 34112284809 | Shop at ECS Tuning | |||||
| -- | Brake disc, ventilated, right | 380X30 | 1 | 34112284810 | Shop at ECS Tuning | |||||
| 01 | Retrofit kit sport brake pads rear | S4007 | 1 | 34212284766 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Brake disc, ventilated, left | 370X24 | 1 | 34212284811 | Shop at ECS Tuning | |||||
| -- | Brake disc, ventilated, right | 370X24 | 1 | 34212284812 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
