Set of BMW Performance Brakes, front for BMW 3 Series E90 LCI 318i (2011)

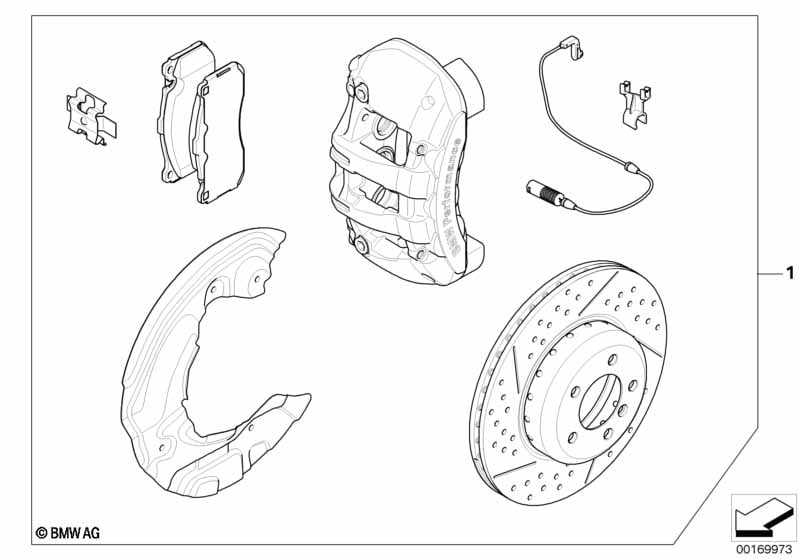

This Set of BMW Performance Brakes, front technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with BMW LA wheel ellipsoid spoke 162 or BMW LA wheel/double spoke 195 or BMW alloy wheel, double spoke 161 or BMW alloy wheel, double spoke 161 or BMW light alloy wheel, spider spoke 157 or BMW LA wheel, star spoke 185 or BMW LA wheel, star spoke 189 or BMW light alloy wheel, spider spoke 142 or BMW light alloy wheel, spider spoke 158 or BMW light alloy wheel, spider spoke 159 or BMW light alloy wheel, cross spoke 197 or BMW light alloy wheel, spider spoke 160 or BMW light alloy wheel, spider spoke 187 or BMW light alloy wheel, radial spoke 216 or BMW light alloy wheel, V-spoke 141 or BMW light alloy wheel, V-spoke 188 or BMW alloy wheel M V-spoke 217 or BMW LA wheel, V-spoke 285 or BMW LA wheel, Individual 152 I, 18" or BMW LA wheel, V-spoke 228 individual or BMW alloy wheel, M double spoke 194 or BMW alloy wheel, M spider spoke 193 or BMW alloy wheel, M double spoke 207 or BMW alloy wheel, M double spoke 208 or BMW alloy wheel, M double spoke 225 or BMW LA wheel, dual spoke 261 or BMW LA wheel, star spoke 256 or BMW LA wheel, star spoke 230 or BMW LA wheel, star spoke 286 or BMW LA wheel, star spoke 287 or BMW LA wheel, star spoke 262 or BMW LA wheel, star spoke 264 or BMW LA wheel, multispoke 284 or BMW LA wheel, W spoke 263 or 17' WTW Multi Spoke 284 or 17" LAW Double Spoke 178 or 18" LAW Double Spoke 182 or 18" LAW Radial Spoke 196 or Star spoke composite 179, 18-inch or 19" LAW Radial Spoke composite wheel 198 or Star spoke 199, 19-inch or Star spoke composite 179, 19-inch or 19'' LAW M Cross Spoke 101 or 18" LAW Radial Spoke 216 or 18" LAW Performance Double Spoke 269 or 17" WTW Star Spoke 256 or 18" LAW V Spoke 217 or 19" LAW Performance Double Spoke 269 or 17" LAW Radial Spoke 32 or 17" LAW M Double Spoke 207 or 17" WKR Radial Spoke 32 or 19" LAW Star Spoke 311 or 18" LAW Star Spoke 311 or 18'' LAW M Performance Double Spoke 313M or 19" LAW Performance Double Spoke 313 |
S2ABA=Yes S2B4A=Yes S2BGA=Yes S2BZA=Yes S2C4A=Yes S2C5A=Yes S2C6A=Yes S2CHA=Yes S2CYA=Yes S2CZA=Yes S2DAA=Yes S2HBA=Yes S2HCA=Yes S2HKA=Yes S2KCA=Yes S2KEA=Yes S2KFA=Yes S2KUA=Yes S2M0A=Yes S2M8A=Yes S2MEA=Yes S2MFA=Yes S2MGA=Yes S2MHA=Yes S2MPA=Yes S2MRA=Yes S2R2A=Yes S2R4A=Yes S2S1A=Yes S2S2A=Yes S2SLA=Yes S2SMA=Yes S2SZA=Yes S2WAA=Yes SZKYA=Yes SZL2A=Yes SZL5A=Yes SZL8A=Yes SZLBA=Yes SZLDA=Yes SZLFA=Yes SZLHA=Yes SZLLA=Yes SZLPA=Yes SZLQA=Yes SZP7A=Yes SZQFA=Yes SZR0A=Yes SZR2A=Yes SZREA=Yes SZWMA=Yes SZXSA=Yes SZXTA=Yes SZXWA=Yes SZXXA=Yes |
||||||||
| For vehicles with Usable load increase and Reinforced brakes Important! At least 17" LA wheels required |
S100A=No S102A=No |
|||||||||
| 01 | Retrofit kit, Sport brakes, front axle | BMW PERFORMANCE | 1 | 09/2008 | 34110444738 | $1685.00 | Shop at ECS Tuning | |||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E90 LCI 318i Set of BMW Performance Brakes, front?
- This technical diagram illustrates the Set of BMW Performance Brakes, front within the Retrofitting / conversion / accessories group for the 3 Series E90 LCI 318i produced during 2011. It provides a detailed exploded view of the components, identifying key parts such as the Retrofit kit, Sport brakes, front axle (Part #34110444738).
- Which models use the hardware listed in this Set of BMW Performance Brakes, front?
- The hardware and components featured in the Set of BMW Performance Brakes, front are specific to the 3 Series E90 LCI 318i produced during 2011. These technical specifications ensure that parts like the Retrofit kit, Sport brakes, front axle (34110444738) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Set of BMW Performance Brakes, front assembly?
- Each item in the Set of BMW Performance Brakes, front corresponds to the numbered list below the illustration. For the 3 Series E90 LCI 318i, you can identify the Retrofit kit, Sport brakes, front axle by locating its position on the schematic, which then links to the official BMW part number 34110444738 for the Retrofitting / conversion / accessories section.
